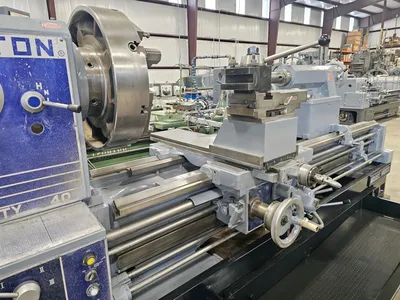

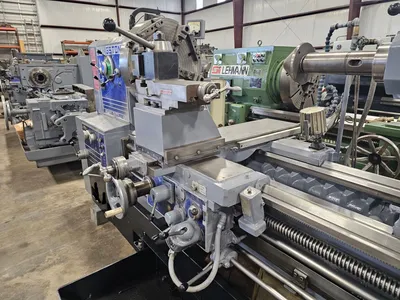

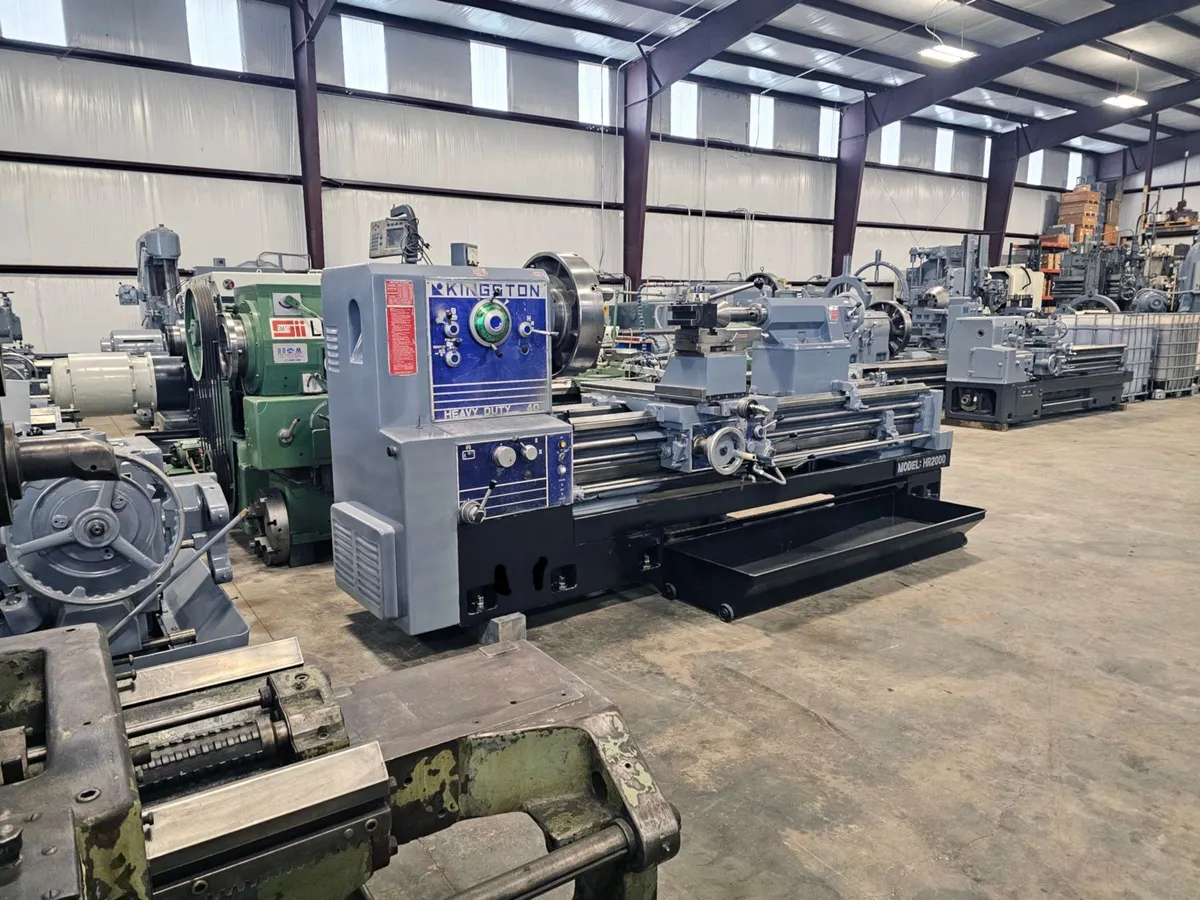

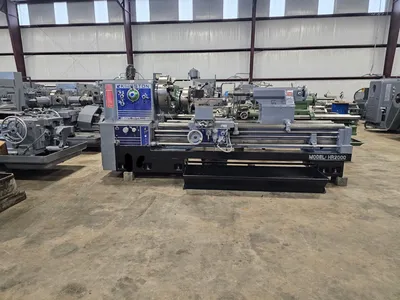

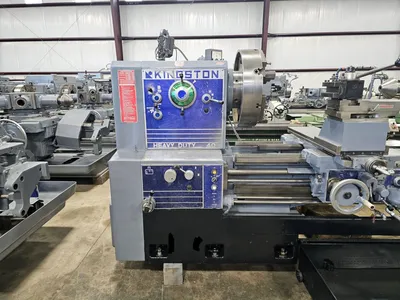

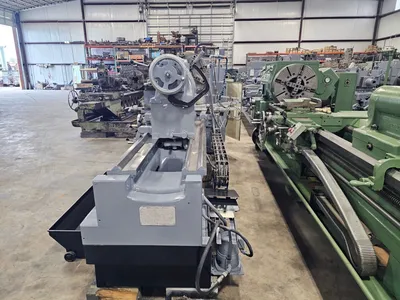

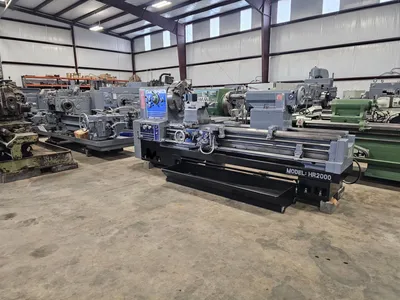

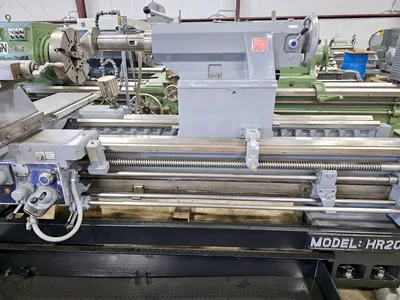

KINGSTON HR2000 Engine Lathe from 2010 in used condition. Key specs: 40" swing, 80" centers, 4" spindle bore, and 20 hp power. Includes rapid traverse, metric and inch threading, Acru-Rite DRO. Weight: 12,000 lbs., with floor space of 54" x 173".
40″ x 80″ New Kingston Lathe Model HR2000 Specifications:
Swing Over Bed........................................40″
Swing Over Cross Slide................................31.0″
Swing Over Gap........................................51.5″
Distance Between Centers..............................80″
Width of Bed..........................................22″
Height from floor to work center......................51.5″
Number of Spindle Speeds..............................16
Spindle Speed.........................................8-800 RPM
Spindle Bore..........................................4.09″
Spindle Nose..........................................D1-11
Spindle Taper of Bore & Center........................ASA #450 x M.T. #6
Chuck Size............................................24" 4-Jaw
Chuck Size............................................20" 3-Jaw
Number of Feed Changes Fine (20), Normal (40), Course (30)
Range of Feeds per Revolution.........................0.0384″-0.2694″
Longitudinal Cross....................................1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch....................1.9” / 2 TPI
Threading.............................................Inch/Metric
Threading range Whitworth 40..........................2 to 28 TPI
Coarse 16 Steps.......................................5/8″ to 8″ Pitch
Threading range Metric 31 Steps.......................1 to 14 mm
Coarse 61 Steps.......................................16 to 200 mm Pitch
Threading range Module 20 Steps.......................0.5 to 7 M
Coarse 30 Steps...................................... 8 to 56 M
Threading range D.P. 40 Steps.........................56 to 4 D.P.
Coarse 30 Steps.......................................3.5″ to .5″ D.P.
Maximum Travel of Compound............................9.4″
Maximum Travel of Cross Slide.........................21.2″
Tailstock Quill Travel................................11.8″
Tailstock Quill Diameter..............................5.1″
Tailstock Center......................................M.T. #6
Main Drive Motor......................................20 HP. Wired 220 Volts
Coolant Pump Motor....................................1/4 HP
Floor Space...........................................R-L 193" X F-B 82"
Height................................................72"
Machine Weight........................................11,000 Lbs.
Foot Brake............................................Yes
Coolant Pan & Pump....................................Yes
Acru-Rite DRO.........................................Yes
Note: Machine has been well maintained.
Machine has been cleaned, painted and cycled.
