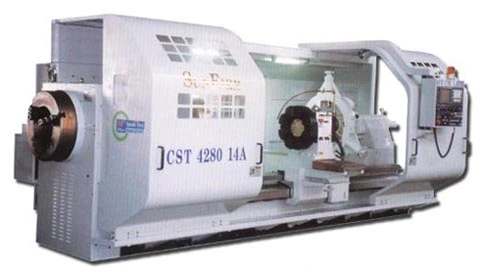

New SUN FIRM SUPER TURN CST 42 | New Machinery, CNC Lathes Flat Bed

Control....................................................Fanuc OT

Swing Over Ways............................................42"
Swing Over Cross Slide.....................................27"
Cross Travel X Axis........................................26"
Cross Slide Travel Longitudinal Z Axis.....................40"
Swing In Gap...............................................55"
Gap Width..................................................22"
Center Distance............................................40"
Bed Width..................................................26"
Spindle Nose...............................................A2-11
Spindle Thru Hole Standard.................................6"
Spindle Hole Options.......................................9",10",12",14" & 16"
Spindle Nose Optional......................................A2-15 & A2-20
Spindle Speeds (2 Ranges)..................................1 To 680 Rpm's
Chuck Size.................................................24" 4 Jaw
Front Turret Standard Vertical.............................8 Station
Front Optional Vertical Turret.............................12 Station
Front Optional Horizontal Turret...........................4 Or 6 Station
Turret Tooling For V 8 Station.............................1-1/4" X 1-1/4"
Boring Bar Diameter On Vertical Turrets....................2-3/8"
Cutting Feed Rate..........................................0.001 To 0.500 IPM
Rapid Traverse X Axis......................................393 IPM
Rapid Traverse Z Axis......................................315 IPM
Tail Stock Quill Diameter..................................6"
Tail Stock Quill Stroke....................................10"
Tail Stock Quill Taper.....................................# 6 Morse
Carriage Mounted Boring Bar Holder.........................6"
Main Motor Continuous......................................22 Hp.
Main Motor 30 Minute Rating...............................26 Hp.
Hardened & Ground Ways.....................................Yes
Hardened & Ground Ball Screws..............................Yes
Chip Conveyor..............................................Yes
