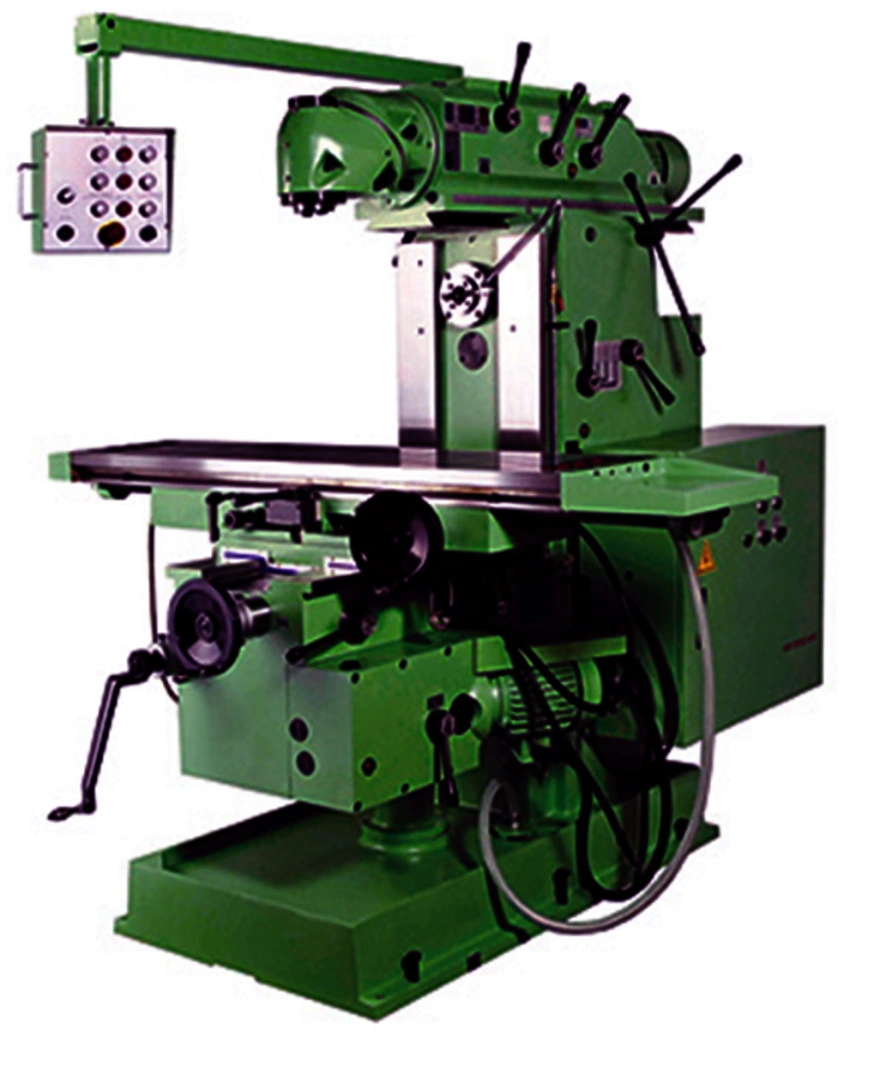

New 13.7"X 59" Masteel Universal Milling Machine With Independent Vertical Head

Table Size........................................13.7" X 59"
Table Load........................................1,320 Lbs.
Table T-Slots Number X Width X Distance Of T-Slot.3 X .708 X 2.75
Table Swivel......................................+ / - 45 Degrees
Table Cross Travel................................15-3/4"
Table Longitudinal Travel.........................46"
Knee Vertical Travel..............................20"
Longitudinal And Cross Feeds......................0.004 To 0.47"
Longitudinal And Cross Rapid Reverse..............47 IPM
Number Of Speed...................................12
Horizontal Spindle Speed..........................4 To 1,800 Rpm's
Vertical Spindle Speed............................35 To 1,600 Rpm's
Spindle Tapers....................................ISO 40/50
Vertical Feeds....................................0.002 To 0.23"
Vertical Rapid Traverse...........................23 IPM
Max Swivel Of Universal Milling Head..............+ / - 360 Degrees
Max. Swivel Of Vertical Spindle...................+ / - 360 Degrees
Machine Height....................................96"
Floor Space.......................................72" X 96"
Weight............................................7,480 Lbs.
Coolant Motor.....................................1/8 Hp.
Feed Motors.......................................2.5 Hp.
Vertical Spindle Main Main........................5.5 Hp.
Main Horizontal Spindle Motor.....................7.5 Hp.

MAXCUT UNIVERSAL MILLING MACHINE
STANDARD FEATURES
Rapid traverse on "X", "Y" & "Z" axis.
Via inverter variable feeding on "X", "Y" & "Z" axis.
Table swivels ±45° degrees left & right
Motorized ARM/RAM elec. Motor is 3.75KW (5.5HP)
High quality meehanite casting body GC-45/DIN-40
Horizontal spindle elec. Motor is 5.5KW (7.5HP)
All gears & shafts are hardened & ground
All square slide way & dovetail way are bigger & stronger.
Cast iron is either ASTM No. 40/meehanite GC-45 or DIN GG-40
All "X", "Y" & "Z" wider square slide ways & table surface
are hardened & ground.
Long Horizontal milling arbour
Two over arm supports
manual drawbars
Coolant pump
Chip tray

Optional Acessories Not Included In Price:
10HP motor for Horizontal spindle........................$600.00
Brake motor with Vertical & Hor. 5.5HP / 7.5HP...........$1.250.00
Brake motor with Ver. & Hor. 5.5HP & 10HP................$1,433.00
Air Power Draw Bar #50 with Horizontal...................$1,833.00
Air Power Draw Bar #50 with Vertical.....................$1,750.00
Variable speed: Horizontal spindle.......................$2,000.00
Variable speed: Vertical Spindle.........................$1,450.00
AL-500S Power Feed X / Y Axis...........................$400.00 each
