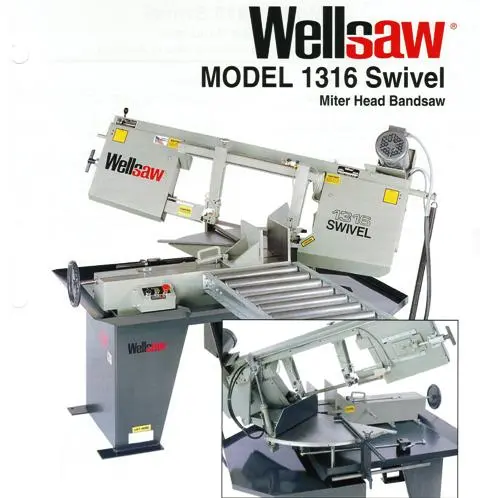

13"X16" Wells Swivel Type Horizontal Saw
Have one to sell?
ConditionNew
New
13"X16" Wells Swivel Type Horizontal Saw
Capacity
Maximum Capacity Flat 16"
Maximum Capacity Round 90 Degrees 13"
Maximum Capacity Round 60 Degrees 8"
Maximum Capacity Round 45 Degrees 11-1/2"
Capacity
Maximum Capacity Rectangular 90 Degrees 13" H X 16" W
Maximum Capacity Rectangular 60 Degrees 8-1/2" H X 8" W
Maximum Capacity Rectangular 45 Degrees 13" H X 11-1/2" W
Work Height 29"
Blade Wheel Size 15"
Blade Speed 70 To 375 SFPM
Blade Size 1" X 12'6"X.035
Floor Space F-B 52" X R-L 76" X 60" H
Weight 1,550 Lbs.
Main Motor 3 Hp.
Discharge Table No
Coolant 8 Gallon Yes
Voltage / Phase / Wellsaw Part Number
115/60/1 (2HP) DL 1316S-717
230/60/1 (2HP) DL 1316S-716
208/60/1 (2HP) DL 1316S-777
208/60/3 (3HP) DL 1316S-745
230/60/3 (3HP) DL 1316S-746
460/60/3 (3HP) DL 1316S-747
Features
Saw Head Swivels On Precision Bearings
Miter To 60 Degrees Nor Need To Swivel Stock
Large Protractor For Accurate Angle Selection
5'X18" Infeed Roller Conveyor
Spring loaded Carbide Guides With Rollers
Combination Reduction Gearbox And Ring & Pinion Blade Drive
Reduction Gearbox and
Baldor® Motor
3 HP Motor 3 Phase TEFC
2 HP Single Phase ODP
Infinitely Variable Blade Speeds
Rite-Tension® Blade Tensioning Device
Wet Cutting System
Powered Blade Brush
110 Volts at Controls
Magnetic Starter Overload and Under Voltage Protection
Precision Ground Bed and Vise Jaws
Quick Acting Vise
Adjustable Stock Stop
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth® Bi-Metal Blade
Coolant for Initial Start-Up
Optional Features for consideration:
Available Options and Accessories
For installation at time of manufacture.
Optional:
DESCRIPTION / PART NO / PRICE
Flush Hose Kit.......................DL 1316S-905.......$316.00
Blade Break/Stall Switch.............DL 1316S-807.......$792.00
Powered Vise, pneumatic,
manual control.......................DL 1316S-736.......$1,819.00
VFD Variable Blade Speed................................$2,113.00
Laser Line Pointer......................................$794.00
Micro Lubricant System (“Near Dry” system)..............$906.00
Lubricant for Micro Lubricant System,
one gallon.........................100318-028..........$71.00
50 Hz or 575 Voltage Contact Factory
Spare Parts Kit.........................................$756.00
Spare Tiger-Tooth® Blades, package of six...............$533.52
Mounting Options
Casters - Set of four (2 locking)...100113-003..........$186.00
OR
Leveling/Vibration mounts,
set of four.........................098041-004..........$110.00
Disconnect Options
Fused Disconnect Lever Type /
NEMA 1 enclosure .......................................$838.00
OR
Fused Disconnect Rotary Type /
NEMA 12 Enclosure........................................$897.00
Material Handling
Overhead Bundle Clamp,
pneumatic, manual control............DL 1316S-910........$1,969.00
Gravity Roller Conveyors,
5ft x 18”............................098050-013..........$737.00
10ft x 18”...........................098050-014..........$1,221.00
Mid-Duty Stock Stand, single roller
250 lb. capacity, 18" wide...........098047-001..........$216.00
Heavy Duty Stock Stand, single roller
6" wide 1000# capacity...............M-325BM.............$586.00
(use pn 325H if saw if saw is equipped with casters or vibration mounts)
12” wide 1000# capacity..............M-326BM.............$607.00
(use pn 326H if saw is equipped with casters or vibration mounts)
Freight Quote Disclaimer. Please read.
These policies are controlled by the carrier not by Wellsaw.
Unless specified in the quote,
Freight is quoted only for the item(s) at the time of the request. If your customer changes or adds options to the order this quote is no longer valid.
This quote is valid for 30 days.
This freight quote is based upon shipment to a BUSINESS location in the ZIP code provided. The carrier assumes that the business has a loading dock and fork truck to unload the package.
There will be additional charges if the carrier determines that the ship-to location is Non-Commercial, also referred to as "residential" or "farm".
There will also be additional fees for:
no dock lift gate services
advance-notice phone calls
delivery to schools, training centers, church or government offices
delivery to location needing an appointment and/or escort such as: military facility, secure commercial facility (i.e. large mill or plant)
OSHA STATEMENT
Wellsaw band saw machines meet the OSHA safety standards that are in effect as of the time of this writing. Compliance with OSHA requirements is the legal responsibility of the user. All Wellsaw band saws now include as standard equipment, blade guards, low voltage protected switches with automatic cut-off at the completion of a cut, enclosed belt and pulley guards and grounded electrical features.
WARRANTY POLICY
WARRANTY PERIOD: One year from the date of purchase.
Wellsaw band saws are warranted against defects in material or workmanship installed or performed at our factory. Within the warranty period we will, free of charge, at our option, either repair or replace any part which our examination discloses to be defective because of workmanship or defect in the material. This warranty does not apply if the machine or part has been used in a manner inconsistent with its design or which has been subject to accident, alteration, abuse or misuse or which fails due to lack of care or is the result of improper power supply and specifically does not apply to normal wear. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. Wellsaw shall not be liable of consequential or incidental damages suffered or incurred with respect to defective materials or workmanship. We do not authorize any person or representative to make any other warranty or to assume for us any liability in connection with the sale of our products other than those contained herein. Any agreements outside of or contradictory to the foregoing shall be void and of no effect. All transportation costs on products or parts submitted to Wellsaw under this warranty must be paid by the user. No products or parts are to be returned without first obtaining permission
