New MASTEEL UBM-110/20 RS | New Machinery, CNC Boring Mill Table Type
Have one to sell?
ConditionNew
New

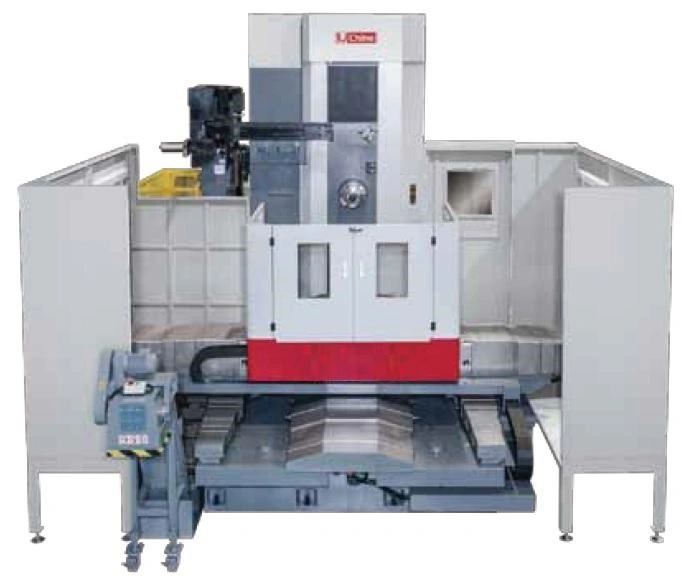

4.33" New Maxcut / Uchine CNC Horizontal Boring Mill
Control Fagor 8065
Spindle Size 4.3
Spindle Taper Cat #50
Automatic Tool Changer 60 ATC
Spindle Speeds (2 Steps) 35 To 2,500 Rpm's
Spindle Travel W Axis 19.63"
Spindle Head Travel Up & Down Y Axis 70.86"
Column Travel In & Out Z Axis 55.11"
Rotary Table Size 49.21" X 59"
B Axis Feed / Rapid Traverse Rate 1 Deg. To 360 Deg.
Table Load For B Axis Feed Cutting Function 11,000 Lbs.
Table Travel Cross X Axis 78.74"
Rapid Traverse Rate X, Y, Z .393 Min.
Feeds X, Y, Z .001 To
Main Motor 30 /40 Hp.
Dimensions 187" W X 296" D
Height 146"
Weight 49,604 Lbs.
C3 Double Nuts High Class Precision Ball Screws Fitted Yes
Table Load For Indexing And Positioning 13,000 Lbs.
Operator Manuals Yes
Machining Leveling Pads Yes
Air Conditioner Yes
EMC Yes
Safety Module Yes
Work Lamp Yes
RS 232 Yes
Heat Exchanger Yes
Auto Lubrication System Yes
Hydraulic System Yes
Coolant Yes
Chip Auger For Table & Chip Conveyor Yes
Table Guards For CTS System Yes
Auto Power Off Yes
Telescopic Way Cover For Sub Supporter Guideways Yes
Table Guards Around Table Yes
Coolant Thru Spindle 300 PSI Yes
Box Ways X & Y Axis
Featuring 12 Blocks Z Axis
Linear Scales X, Y, Z, Axis
Electric And Wiring Preparation For CTS Yes
Spindle Oil Cooler Yes
Safeguarding Located At Rear Of Column Yes
Fagor 8065 Control with 15" High resolution color LCD monitor.
Table: 59" x 49.21"(1500x1250mm)
13200Lbs loading capacity for 0.001° positioning
11000Lbs loading capacity with B axis cutting feed function
Servo driver 0.001°, full CNC Simultaneously controlled continuous rotary table.
X/Y/Z/W Travel:80"/72"/56"/20" (2000/1800/1400/500mm)
Solid one piece casting base instead of out-bound supports
2 speed, high torque ZF planetary gearbox on spindle for heavy duty work at low speed
2500 rpm spindle with ISO#50 taper
Linear Scales on X/Y/Z axis and angle encoder on B axis for absolute positioning accuracy
4-roller liner guard way on Z axis
Hardened and ground guide ways on Y axis allows max torque on the spindle
Full enclosure flash guard with working station
60 position ATC mounted on machine to avoid any misalignment
12" Spindle sleeve as standard accessory
300PSI Through spindle coolant and guard system for CTS
Heavy duty telescopic way cover for sub-supporter guide ways
Chip conveyor combine with Chip auger for maximum chip handling
Optional Equipment:
Manual 90 Degrees Milling Head (2000rpm) ($14,800.00)
Automatic Vertical / Horizontal Head 3500rpm ($44,800.00)
CNC Boring + Facing Head ZX420-TC ($68.800.00)
Max boring diameter:770mm ( 30.315â€)
Max facing diameter: 980mm ( 38.583â€)
Boring slide travel:102mm ( 4.016†)
Perform accurate lathe-type operations on horizontal boring mills
Maximum application flexibility
Machine diameters, faces, tapers,radii, and profiles
High material removal rates
High quality for long working life
Extremely rigid and durable design
Backlash-free operation
Examples of internal configurations machined using ZX contouring head system.
Part geometries shown below are commonly found in parts such as oil valves and blowout preventers, gearboxes, pump housings, compressors, engine housings, aerospace and power generation components, large castings, and heavy equipment components.
