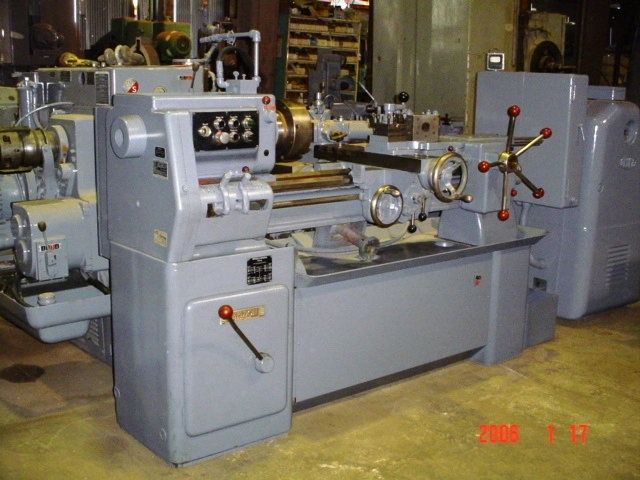

Used SHELDON | Lathes, Engine

Swing Over Bed Ways.................................16-1/2"
Swing Over Cross Slide..............................8-1/2"
Center Distance.....................................30"
Spindle Hole........................................1-1/2"
Spindle Speeds......................................22 To 1,250 Rpm's
Spindle Nose........................................D-1-8
Chuck Size.........................................12 3-Jaw
Feeds..............................................0.0020 To 1.200 IPM
Threads Inch.......................................4 To 240 TPI
Bed Turret Position................................6
Bed Turret Travel..................................12"
Main Motor.........................................5 Hp. 220 /440
Machine Floor Space................................R-L 96" X F-B 36"
Height.............................................50"
Weight.............................................4,500 Lbs.
Threads Metric.....................................No
Coolant............................................Yes
Hardened & Ground Bed Ways.........................Yes
Taper Attachment...................................No
Full Length Chip Pan...............................Yes

Note:
Machine has been cleaned, painted and cycled.
