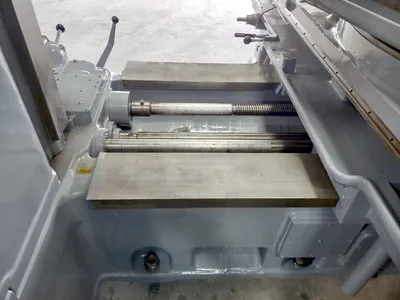

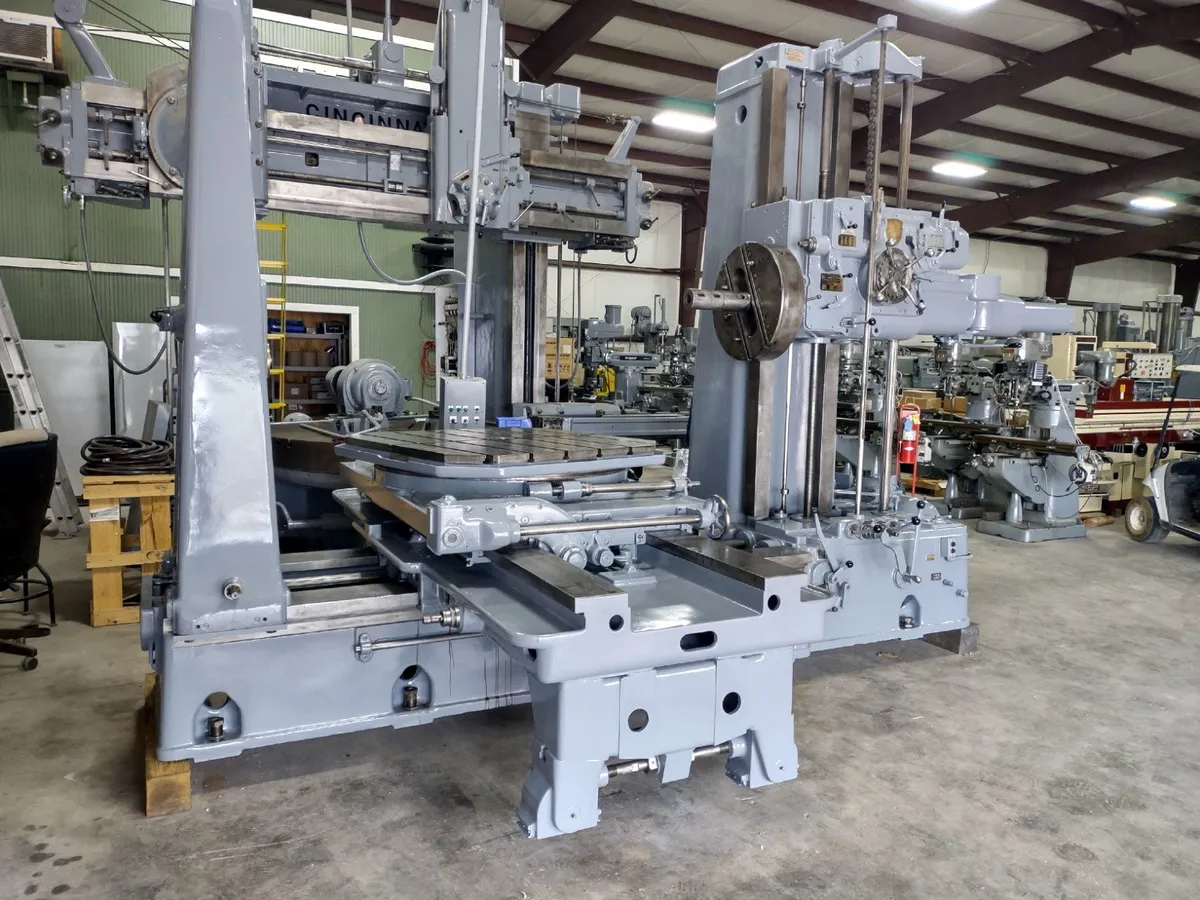

4" Used Giddings & Lewis Model 340 RT Table Type Horizontal Boring Mill

Spindle Size........................................4"
Spindle Taper.......................................# 5 Morse
Spindle Speeds Main................................10 To 600 Rpm's
Spindle Feeds.......................................0.005 To 250 IPM
Spindle Travel Main.................................22"
Spindle Taper Auxiliary.............................#4
Spindle Size Auxiliary .............................2"
Spindle Travel Auxiliary............................7"
Spindle Speed Aux. .................................32 To 2,000 Rpm's
Spindle Head Travel Up & Down.......................48"
Saddle Travel In & Out With Tail Stock..............48"
Rotary Table Size...................................48" X 48"
Table Travel Cross..................................49"
Saddle And Table Feeds..............................0.05 To .250
Main Motor..........................................20 Hp.
Floor Space.........................................R-L 20' X F-B 8'
Machine Height......................................10'
Machine Weight......................................34,500 Lbs.
Built In Rotary Table...............................Yes
Tailstock...........................................No

Optional Cost:
20" Facing Head With Engagement Clutch..............$19,500.00
Tail Stock And Shaft................................$15,750.00

Note: Machine has been cleaned, painted and cycled.
Headstock and gearboxes drained and flushed.
