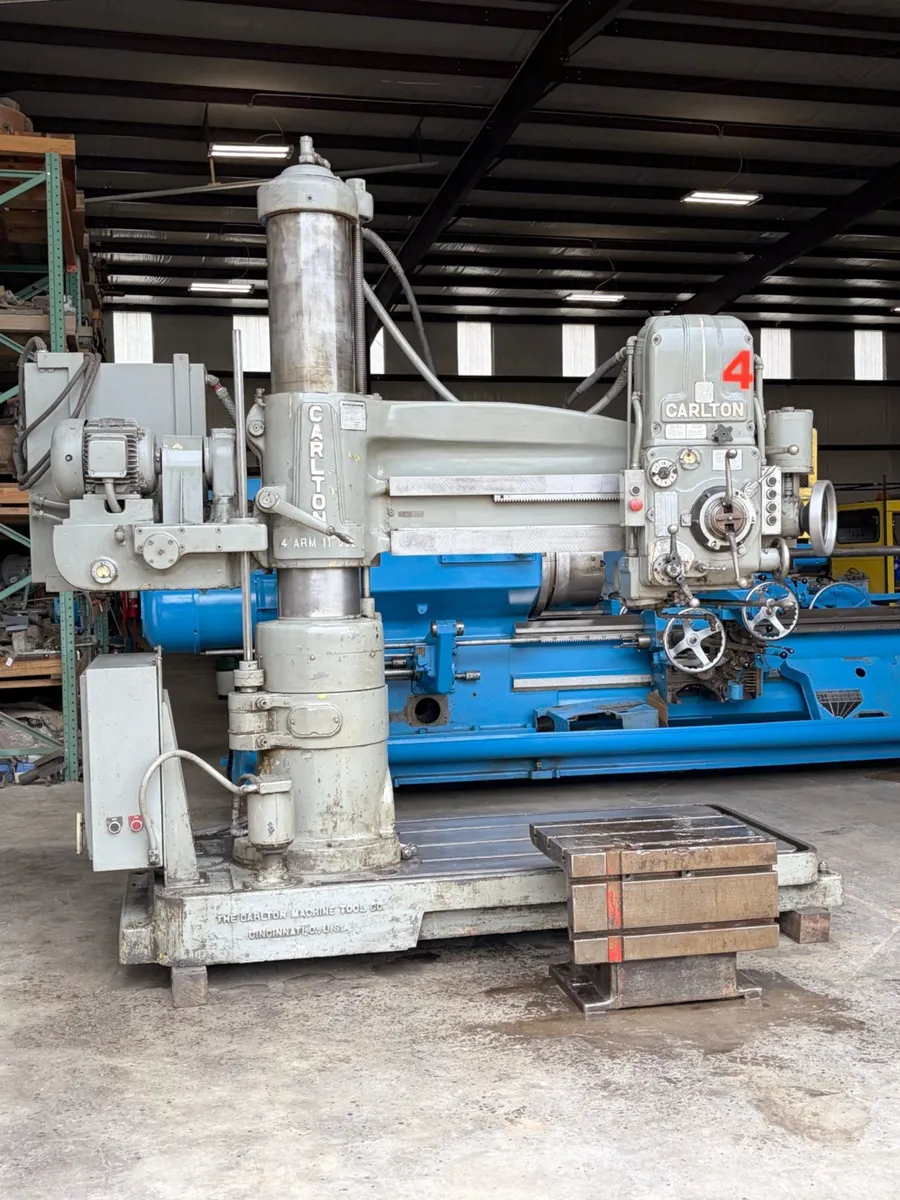

Carlton 4' X 11" Radial Arm Drill

Arm Size..........................................4'
Column Diameter...................................11"
Column To Spindle Center..........................48"
Spindle Speeds....................................50 To 1,500 Rpm's
Spindle Taper.....................................# 4 Morse
Spindle Travel....................................12"
Spindle Diameter..................................2-1/2"
Spindle Min. / Max Dimeter Drill..................1/8 To 2-1/2"
Spindle Feeds.....................................0.006 To .250
Main Motor........................................5 Hp. 220 / 440 / 3
Floor Space Length................................R-L 108" X F-B 4'
Machine Height....................................8'4"
Weight............................................8,000 Lbs.
Manual Clamp To Head..............................Yes
Power Clamp On Arm................................Yes
Power Elevation...................................Yes

Note: Machine will be cleaned, painted and cycled.
Oil will Be change and head flushed. Slight glasses
replaced.We are waiting for a feed gear to come in.
