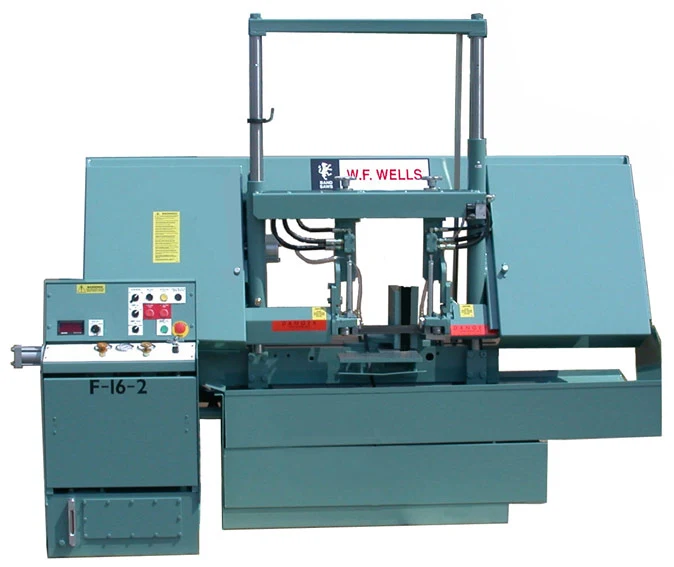

W.F. Wells Model F 16-2 16"X 20" Horizontal Saw

Maximum Capacity Round 16"
Maximum Capacity Flat 20"
Maximum Capacity @ 90 Degrees 16" X 20"
Maximum Capacity @ 45 Degrees 16" H X 9" W
Maximum Capacity Round At 45 Degrees 9"
Weight 2,450 Lbs.
Work Height 26"
Blade Size 15' X 1-1/4"
Blade Speed 60 To 425 SFPM
Sawing Force 30 To 120 Lbs.
Main Motor 7-1/2" Hp. AC Vector Drive
Motor Hydraulic 2 Hp.
Floor Space 97" X 49"
Height 83"
Weight Capacity 5,000 Lbs.

Hydraulic Blade Tension Yes
Hydraulic Vise Yes
Carbide Guides With Back Up Rollers Yes
Power Down Yes
Coolant 15 Gallon Yes
Manual In Feed Of Material Yes
Hydraulic Vise Yes
Discharge Table No

Prices and specifications subject to change without notice.
Optional:
Voltage..............Order Number
208-60-3.............0010594
230-60-3.............0010595
460-60-3.............0010596
575-60-3 (5 HP)......0010597
Description:.....................................Order Number..Price
Automatic Length Stop Assembly...................0056704.......$475.00
Discharge Worktable,
20" W x 48" L with Stock Stop....................0056025.......$3,050.00
Work Light, Wired In.............................0052016.......$375.00
Blade Break/Stall Switch.........................0052021.......$675.00
Hydraulic Holddown, Saw Vise.....................0056036.......$5,475.00
Laser Shadow Line................................0052220.......$3,050.00
Hydraulic Chip Conveyor Auger Style..............0056023.......$5,475.00
21" x 10' Powered Conveyor, Electric.............0056202.......$10,875.00
High Speed Drive & Guides (1" Blade)
400-3000 SFPM....................................0056699.......$7,950.00
Mist Coolant.....................................0010869.......$3,050.00
Free Standing Roller Stock Conveyors, 6" Centers
18" X 5' X 2,500 lbs. Cap. Distributed Weight....0050030.......$950.00
18" X 10' X 5,000 lbs. Cap. Distributed Weight...0050029.......$1,575.00
21” X 5’X 5,000 lbs. Cap. Distributed Weight ....0050247.......$1,850.00
21" X 10' X 10,000 lbs. Cap. Distributed Weight..0050250.......$2,875.00

Consult Factory For Accessories
Prices and specifications subject to change without notice.
