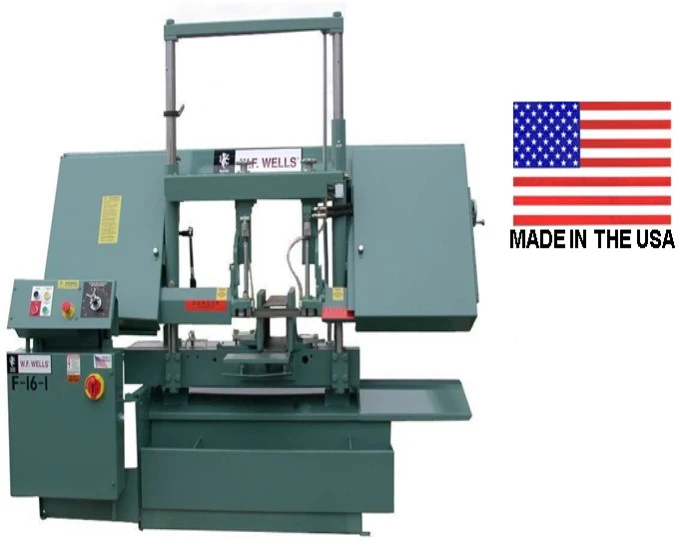

16"X 20" W.F. Wells Dual Column Horizontal Saw Model F-16-1

Maximum Capacity Round...............................16"
Maximum Capacity Flat................................20"
Maximum Capacity @ 45 Degrees........................16" H X 10" W
Work Height..........................................26"
Blade Size...........................................15' X 1-1/4"
Band Wheel Size......................................20"
Saw Weight Capacity..................................5,000 Lbs.
Blade Speed..........................................60-425 SFPM
Sawing Force.........................................30 To 120 Lbs.
Main Motor...........................................7-1/2" Hp.
Motor Hydraulic......................................1/3 Hp.
Floor Space..........................................79" X 49"
Machine Height.......................................83"
Weight...............................................2,100 Lbs.
Discharge Table......................................No
Manual Vise..........................................8-1/2" Yes
Manual Blade Tension.................................Yes
Carbide Guides With Back Up Rollers..................Yes
Power Down...........................................Yes
Coolant 15 Gallon....................................Yes
Manual In Feed Of Material...........................Yes

Prices and specifications subject to change without notice.
Optional:
Voltage..............Order Number
208-60-3.............0010590
230-60-3.............0010591
460-60-3.............0010592
575-60-3 (5 HP)......0010593
Description.....................................Order Number...Price
Remote Console.................................................$2,950.00
Automatic Length Stop Assembly...................0056704.......$500.00
Discharge Worktable,
20" W x 48" L with Stock Stop....................0056025.......$3,225.00
Work Light, Wired In.............................0052016.......$400.00
Air Vise, Manual.................................0056026.......$2,875.00
Air Hold down....................................0056786.......$3,250.00
Air Vise/Hold down Combined......................0056777.......$5,700.00
Laser Shadow Line................................0052220.......$3,225.00
Chip Conveyor, Electric Auger Style..............0056023.......$5,750.00
21" x 10' Powered Conveyor, Electric.............0056202.......$11,450.00
High Speed Drive & Guides (1" Blade)
400-3000 SFPM....................................0056699.......$8,350.00
Mist Coolant.....................................0010869.......$3,225.00
Free Standing Roller Stock Conveyors, 6" Centers
18" X 5' X 2,500 lbs. Cap. Distributed Weight....0050030.......$1,000.00
18" X 10' X 5,000 lbs. Cap. Distributed Weight...0050029.......$1,675.00
21” X 5’X 5,000 lbs. Cap. Distributed Weight ....0050247.......$1,950.00
21" X 10' X 10,000 lbs. Cap. Distributed Weight..0050250.......$3,025.00

Consult Factory For Accessories
Prices and specifications subject to change without notice.

Customers are responsible for set up of saw, i.e., power, leveling,
conveyors attached, coolant in tank, and extra blades.
