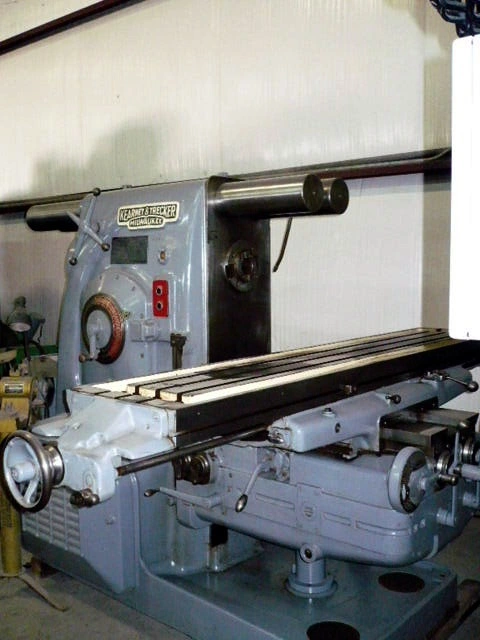

18" X 90" Used K & T Horizontal Milling Machine
Table Size.........................................18" X 90"
Table Travel.......................................50"
Table Cross Travel.................................16"
Spindle Taper......................................50"
Knee Travel Up & Down..............................20"
Spindle Speeds.....................................13 To 1,300 Rpm's
Spindle To Table Min / Max.........................6-3/4" / 16-1/2'
Saddle And Table Feeds.............................3/8 To 90 I.P.M.
Rapids Long. & Cross...............................150 I.P.M.
Rapids Knee........................................37-1/2 I.P.M.
Main Motor.........................................25 Hp.
Currently Wired....................................480/3/60
Machine Floor Space................................R-L 108" X F-B 96"
Height.............................................84"
Weight.............................................15,750 lbs.
Arbor Support......................................No
Coolant............................................Yes
Note: Machine has been cleaned, painted and cycled.
