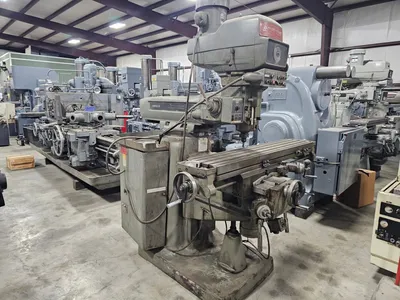

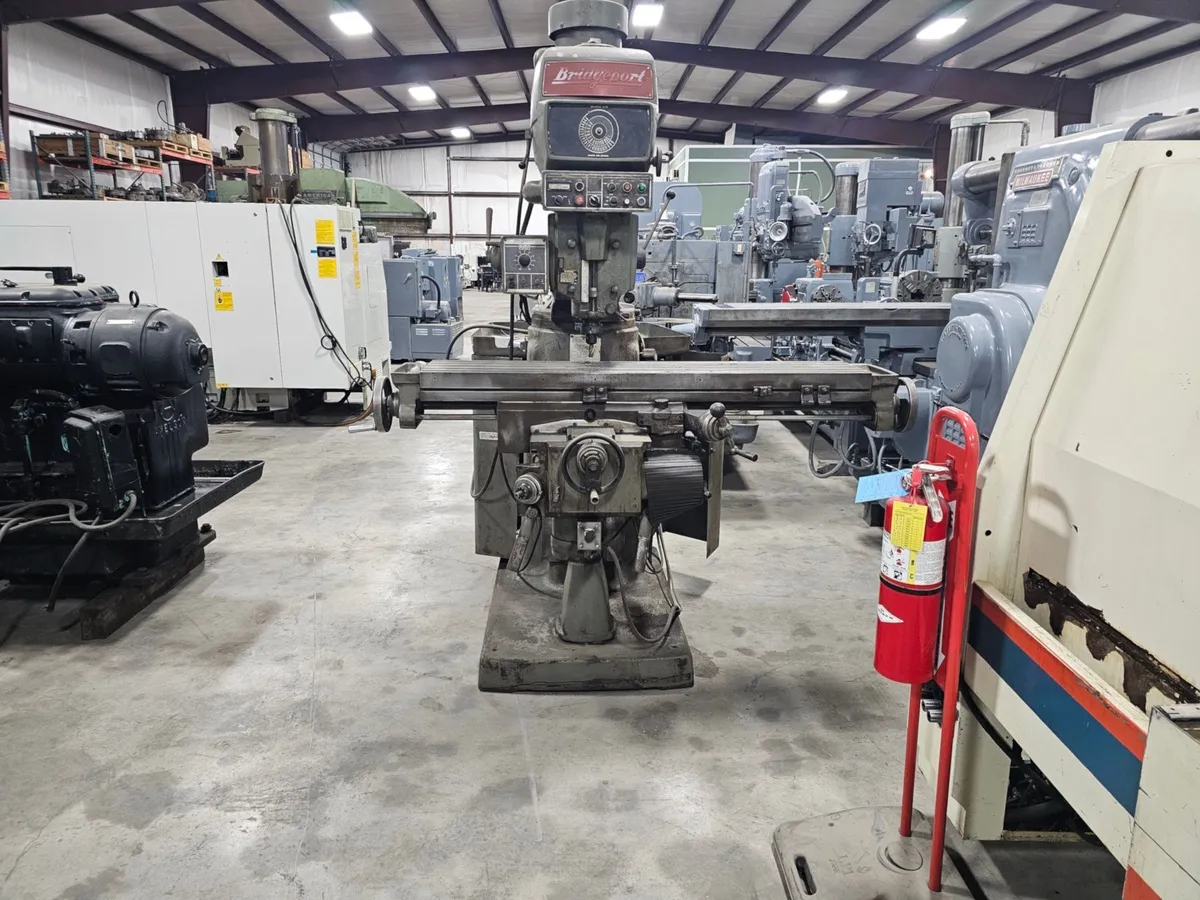

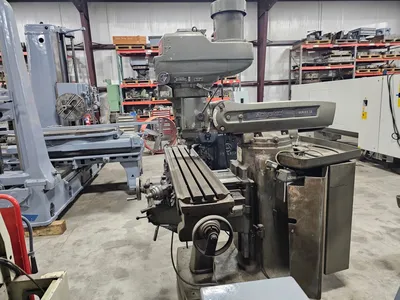

11" X 58" Used Bridgeport Knee Type Milling Machine

Table Size..........................................11" X 58"
Table Load..........................................1,500 Lbs.
Table T-Slots.......................................2-1/2"
Table T-Slott Size..................................5/8"
Table Height Above Floor............................48-3/4"
Spindle Taper.......................................# 40
Spindle Speeds Variable Low Range...................50 To 450 Rpm's
Spindle Speeds Variable High Range..................450 To 3,500 Rpm's
Spindle Feeds.......................................0.06 To 2.50 IPM
Spindle Quill Travel................................5"
Spindle Tilt........................................+/- 45 Degrees
Spindle Swivel......................................+/- 90 Degrees
Spindle To Table Min / Max..........................10-1/2" To 26-1/2"
Spindle Diameter....................................2-1/8"
Spindle Quill Diameter..............................4-1/4"
Saddle Travel In & Out..............................16"
Table Travel Cross..................................31"
Knee Travel.........................................16"
Ram Travel..........................................16"
Drilling In Mild Steel Power Feed / Manual..........3/4" X 1-1/4"
Milling Feed Rates X & Y Axis.......................3.8" To 24 IPM
Milling Feed Rate Z Axis............................3/16 To 12 IPM
Drilling In Mild Steel Power Feed / Manual..........3/4" X 1-1/4"
Main Motor..........................................4 Hp. 240 Volts 3 Phase
Floor Space.........................................R-L 84" X F-B 84"
Machine Height......................................100"
Weight..............................................5,500 Lbs.
Chrome Knee.........................................Yes

Note: Machine has been cleaned, painted and cycled.

Optional Equipment: Prices Subject To Change
D.R.O. System:
Newall 2 Axis Table, Cross Installed...................$4,650.00
Newall 3 Axis Table, Cross And Knee Installed..........$5,490.00
Mitutoyo Digimatic Quill Scale With Bracket Installed..$950.00
