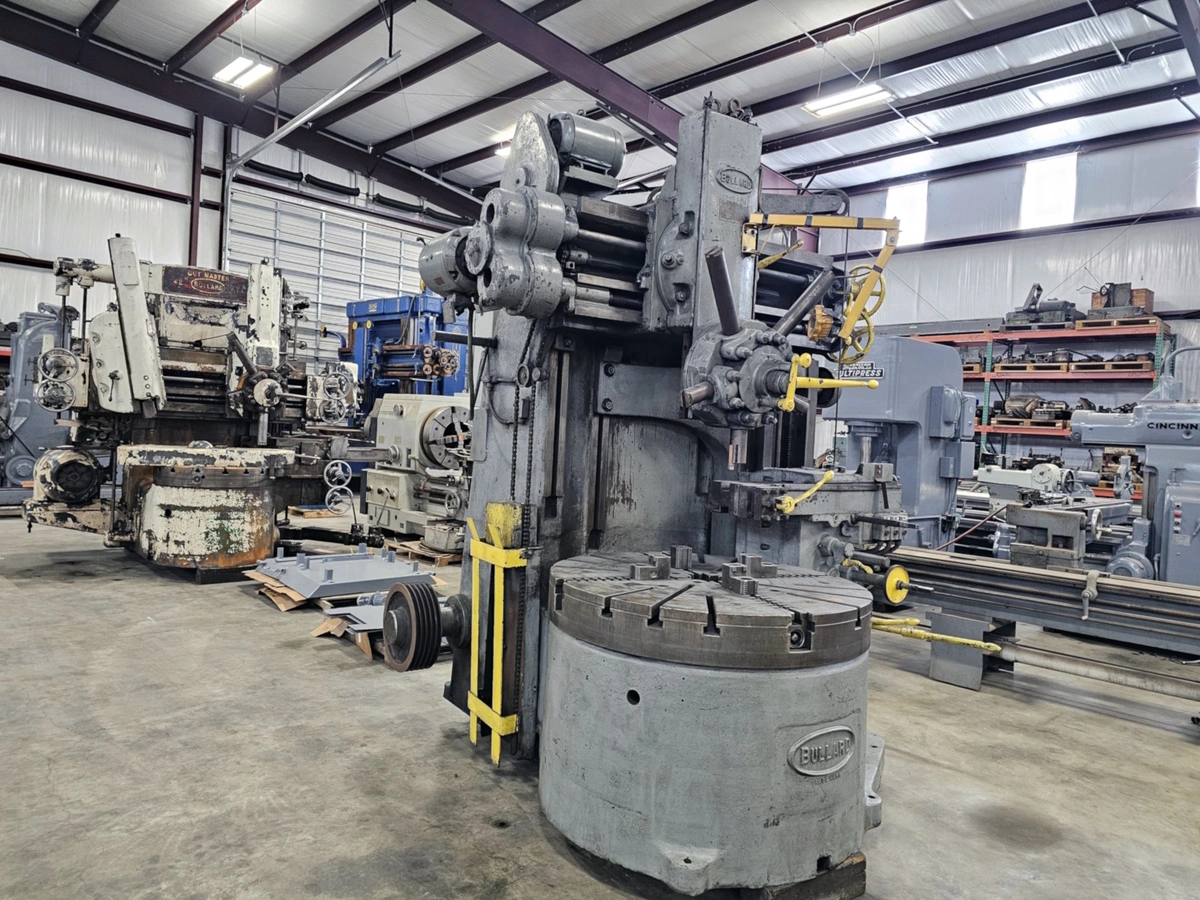

Used 1943 BULLARD 54 SPIRAL DRIVE | Boring Mills, Vertical Turret Lathe

Table Size....................................................50" 4 Jaw
Swing Side Head Above Table...................................56"
Swing Side Head Below Table...................................58"
Height Under Rail.............................................35-1/2"
Table Speed...................................................3.5 To 60 Rpm's
Floor To Table Height.........................................34-/2"
Feeds.........................................................002 To .500 I.P.R.
Turret Head Travel Left To Right..............................34-1/2"
Turret Ram Head Turret Travel Up & Down.......................30"
Turret Head Position..........................................5
Side Head Travel In & Out.....................................27"
Side Head Travel Up & Down....................................25"
Main Motor....................................................25 Hp.Wired 240 Volts
Machine Floor Space...........................................R-L 10' X F-B 9'6"
Machine Height................................................10'
Machine Weight................................................25,000 Lbs.
Turret Head Swivel............................................Yes
Side Head.....................................................Yes
Machine needs a small pit in the floor for the
bearing nut housing...........................................18"X 18" X 6" Height
Reconditioning Note:
Turret & side head gear boxes will be reconditioned.
Spindle & transmission will be checked.
Oil will be drained and tanks will be cleaned.
Side head will be removed and check and cleaned.
Chuck jaws will be removed and taken apart and cleaned.
New electric motors and gear boxes for turret rapid traverse left to right
and up and down.
New electric motor for rail elevation and gear box complete with electrics.
New electrics with exception of main breaker.
New cross feed nut and screw.
New bearing in main motor.
New belts
Machine will be cleaned, painted and cycled.
Machine will take 10 to 14 weeks to complete, once the PO is received.
Price for the above work to be completed $64,500.00
