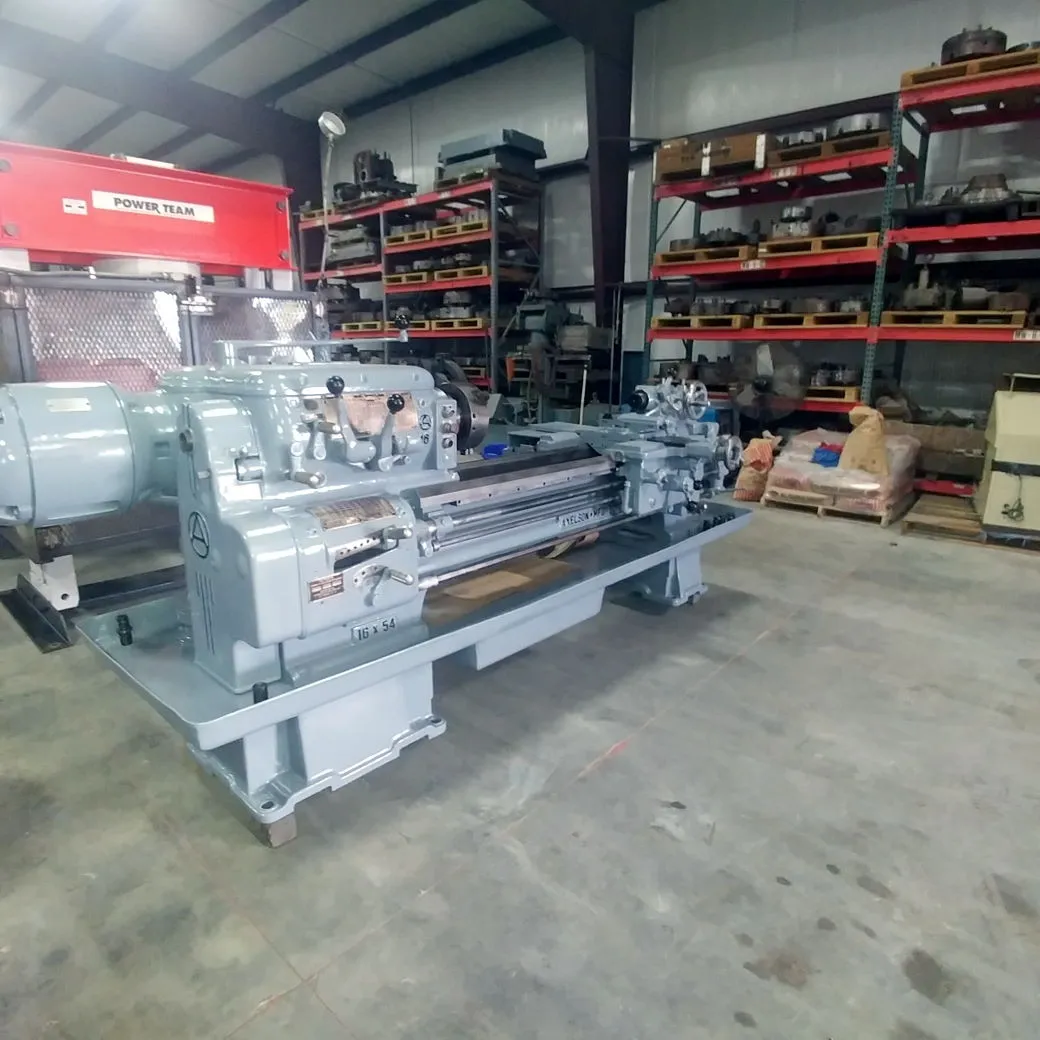

18.5" X 54" Used Axelson Engine Lathe
Lathes, Engine18.5" X 54" Used Axelson Engine Lathe
Swing | 18.5" |
Swing Over Cross Slide | 10.5" |
Centers | 54" |
Spindle Bore | 1.5625" |
RPM | 1,577 RPM |
Power | 15 hp |
Dimensions | R-L 96" X F-B 48" X Height 60" |
Weight | 7,000 Lbs. |
Swing Over Bed Ways 18-1/2"
Swing Over Cross Slide 10-1/2"
Center Distance 54"
Spindle Hole 1-3/4"
Spindle Speeds 13 To 1,577 Rpm's
New Chuck Size 12" 3 Jaw Gator With 2 Piece Jaws ($2,495.00)
Feeds .0027 To .1665 IPR
Threads Inch 48 To 2-7/8 T.P.I.
Tail Stock Quill Diameter 3-1/2"
Tail Stock Quill Travel 8"
Tail Stock Quill Taper # 5 Morse
Main Motor 15 Hp.
Weight 7,000 Lbs.
Threads Metric No
Steady Rest Yes 5" Capacity
Thread Dial Yes
Taper Attachment Yes
Note:Machine has been cleaned, painted and cycled.
Optional:
New Aloris Type Tool Post And 4 Holders. ($1,175.00)
Condition: Good
