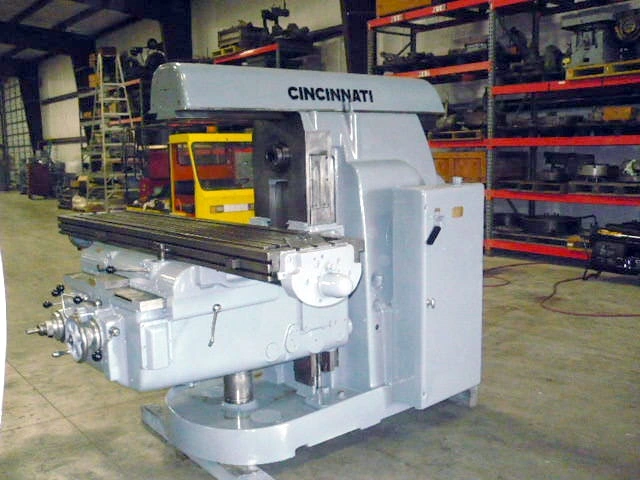

Used 1944 CINCINNATI 4 P | Mills, Horizontal

Table Size.........................................16" X 72
Table Travel.......................................40"
Table Cross Travel.................................16"
Spindle Taper......................................50"
Knee Travel Up & Down..............................16"
Spindle Speeds.....................................12 To 1,200 Rpm's
Spindle To Table Min / Max.........................6-3/4" / 18-1/2'
Saddle And Table Feeds.............................3/8 To 90 I.P.M.
Rapids Long. & Cross...............................150 I.P.M.
Rapids Knee........................................37-1/2 I.P.M.
Main Motor.........................................20 Hp. 220 / 400
Machine Floor Space................................R-L 96" X F-B 96"
Height.............................................84"
Weight.............................................12,500 Lbs.
Arbor Support......................................(1) Yes
Coolant............................................Yes

Note: Machine has been cleaned, painted and cycle.
