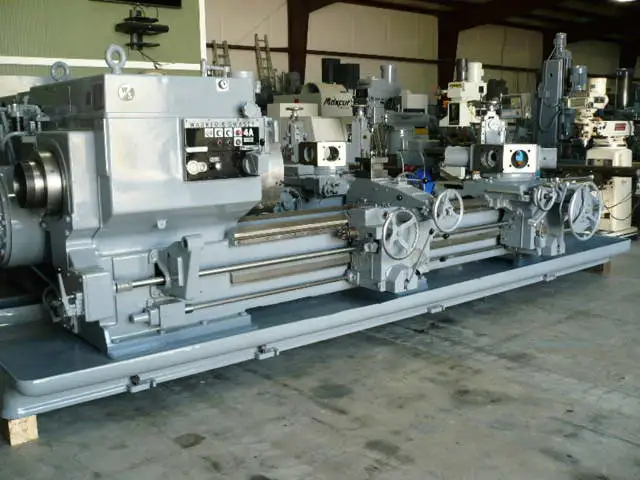

1966 WARNER & SWASEY 4A M-3550 Lot 41
Lathes, Turret Saddle Type
| Model | 4A M-3550 |
| Swing | 28.25" |
| Center Distance | 124 in |
| Dimensions | 23'Long. X 84"Wide X 84" High |
| Weight | 24,000 Lbs. |
Swing Over Bed Ways 28-1/4"
Swing Over Cross Slide Carriage 22"
Center Distance 124"
Center Distance Spindle Nose To Turret Face 144"
Spindle Hole 9-1/4"
Spindle Speeds 20 To 526 Rpm's
Spindle Nose A-15
Chuck Size 24" 3-Jaw
Feeds Cross .0035 To .167 I.P.R.
Feeds Long. .005 To .167 I.P.R.
Main Motor 75 / 37.5 Hp.
23'Long. X 84"Wide X 84" High
Weight 24,000 Lbs.
Chuck Size (New Gator Heavy Duty Not Pictured) 25" 4-Jaw
Power Wrench Chuck Yes
Taper Attachment Rear Apron Yes
Coolant Yes
Side Tool Holder 1
Flange Holders 5
Tool Post 4 Way On Front Yes
Cross Sliding Rear Turret Yes
Rapid Traverse Front & Rear Carriages Yes
Machine has been reconditioned.
Note Reconditioning: Machine's front & rear aprons and rapid traverse box have been reconditioned. Rapid traverse drive box reconditioned, new bearings in main motor. New feed and rapid shafts. Headstock cleaned and flushed, new filters and oil. New lockdown pin and bushing in hex and square turret. New nut and screw in cross slide and hex turret. Gibs reworked and refitted. New 24"4-jaw Gator chuck with reconditioning. It is recommended that you re-bore the flange tool holders on the rear turret to ensure they are on center once the machine is level. Machine has been cleaned, painted, and cycled. Machine may be seen under power with proper notice.
