20" X 94-1/4" Cincinnati Model #5 Plain Dual Power With Independant Power Overarm

Table Size..........................................20" X 94-1/2"
Table Cross Travel..................................16"
Table Travel........................................47"
Spindle Taper Horizontal............................#50 Taper
Spindle To Table Min / Max..........................4-3/4" 14-1/2"
Spindle Taper Vertical..............................#50 Taper
Spindle Speeds Vertical.............................100 To 1,500 Rpms'
Spindle Speeds Horizontal...........................14 To 1,400 Rpm's
Knee Travel Up & Down...............................16"
Rapids Knee.........................................37-1/2 I.P.M.
Rapids Long. & Cross................................150 I.P.M.
Saddle And Table Feeds..............................3/8 To 90 I.P.M.
Main Motor Vertical.................................5 Hp. 440 / 220 Volt
Main Motor Main.....................................20 Hp. 440 Volts
Floor Space.........................................R-L 108" X F-B 120"
Height..............................................84"
Weight..............................................19,750 Lbs.
Vertical Head Swivel Front To Back..................90 Degrees
Vertical Head Swivel Right To Left..................90 Degrees
Double Knuckle Swiveling Vertical Head..............Yes
Pendant Control.....................................Yes
Coolant.............................................Yes

Note: Machine was rebuilt by the government in 1985. I bought it from Government

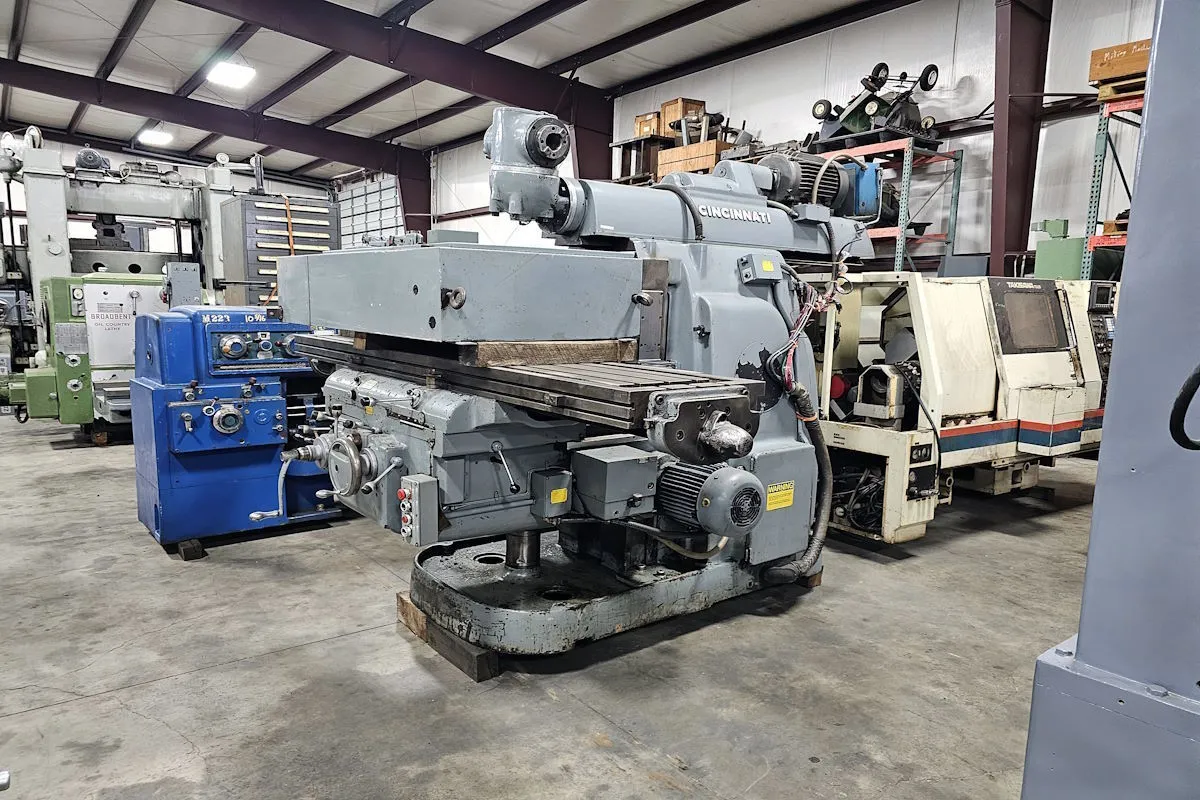

storage around 2005, and sold it to the company I just bought it back from. Pictures
of the machine is how it came back to me. They only ran one shift and did not
run it alot. We will change the oil and any sight glasses that need to be changed.
Machine will be cleaned and cycled prior to shipping.
