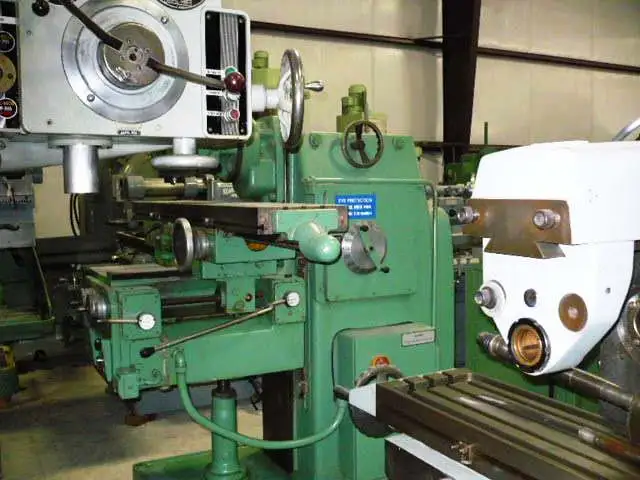

Used 1980 AJAX 32257 | Mills, Combination Vert./Horiz.

Table Size.........................................12" X 63"
Table Travel.......................................31-1/2"
Table Cross Travel.................................12"
Knee Travel Up & Down..............................16"
Spindle Taper Horizontal...........................# 40
Spindle Speeds Horizontal..........................28 To 1,400 Rpm's
Spindle Speeds Vertical............................28 To 1,400 Rpm's
Spindle Taper Vertical.............................#40
Spindle To Table Min / Max.........................4-3/4" 14-1/2"
Saddle And Table Feeds.............................3/8 To 120
Rapids Long. & Cross...............................150 I.P.M.
Rapids Knee........................................37-1/2 I.P.M.
Main Motor Main....................................10 Hp.
Machine Floor Space................................R-L 84 X F-B 72"
Height.............................................72"
Weight.............................................6,500 Lbs.
Swiveling Vertical Head...........................Yes
Coolant............................................Yes
