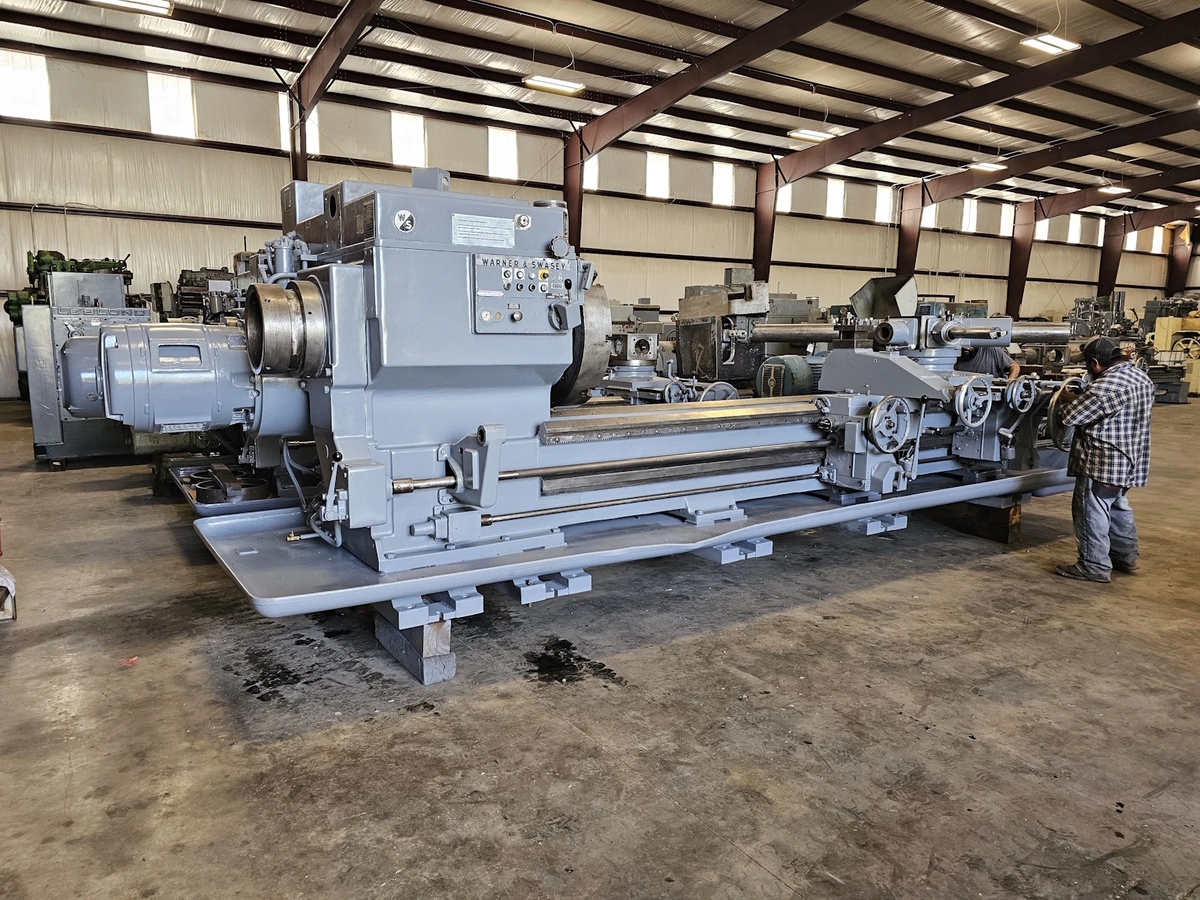

5 A Used Warner & Swasey Square Head Saddle Type Turret Lathe Model 3600 Serial Number 2448331 Year 1971

Swing Over Bed Ways...........................36"
Swing Over Cross Slide Carriage...............32-3/4"
Center Distance...............................141"
Spindle Hole..................................12"
Spindle Speeds................................10 To 281 Rpm's
Chuck Size....................................28" 4-Jaw
Feeds Cross...................................0.0035 To .167 I.P.R.
Feeds Long....................................0.005 To .167 I.P.R.
Threading Full Length.........................1 To 36 TPI
Main Motor....................................75/37.5 Hp.
Floor Space...................................R-L 23'X F-B 92" Wide
Machine Height................................89"
Weight........................................26,000 Lbs.
New Flange Holders............................6
Tool Post 4 Way On Front......................Yes
Rapid Traverse Front And Rear.................Yes
Cross Sliding Rear Turret.....................Yes
Coolant.......................................Yes

Note Reconditioning:

Machine's front and rear aprons reconditioned.
Front & rear rapid traverse boxes will be reconditioned.
Rapid traverse drive box reconditioned.
New bearings in main motor.
New feed and rapid shafts.
Headstock cleaned and flushed, new filters and oil.
New lockdown pin and bushing in hex turret and square turret.
New nut and screw in front cross slide and hex turret.
Gibs reworked and refitted.

It is recommended that you rebore the flange tool holders on the rear
turret to ensure they are on center once the machine is level.

Reconditioning will take 10 To 12 weeks after receipt of P.O.

Price after reconditioning $169,500.00

Optional:
New 32" 4-Jaw Gator Heavy-Duty Chuck...........$17,350.00

Machine wll be cleaned, painted, and cycled.
Machine may be seen under power with proper notice.
