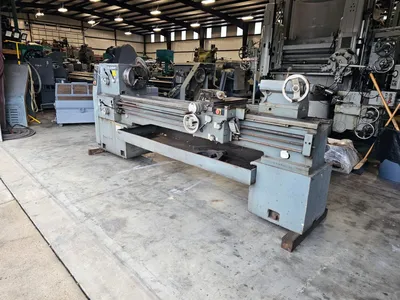

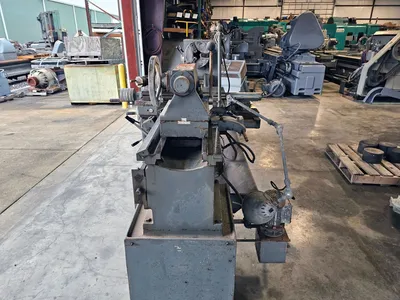

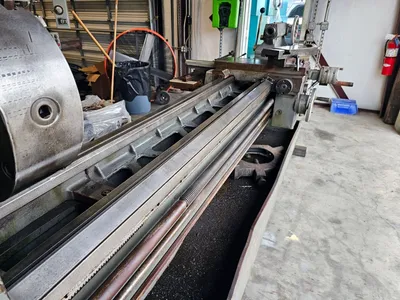

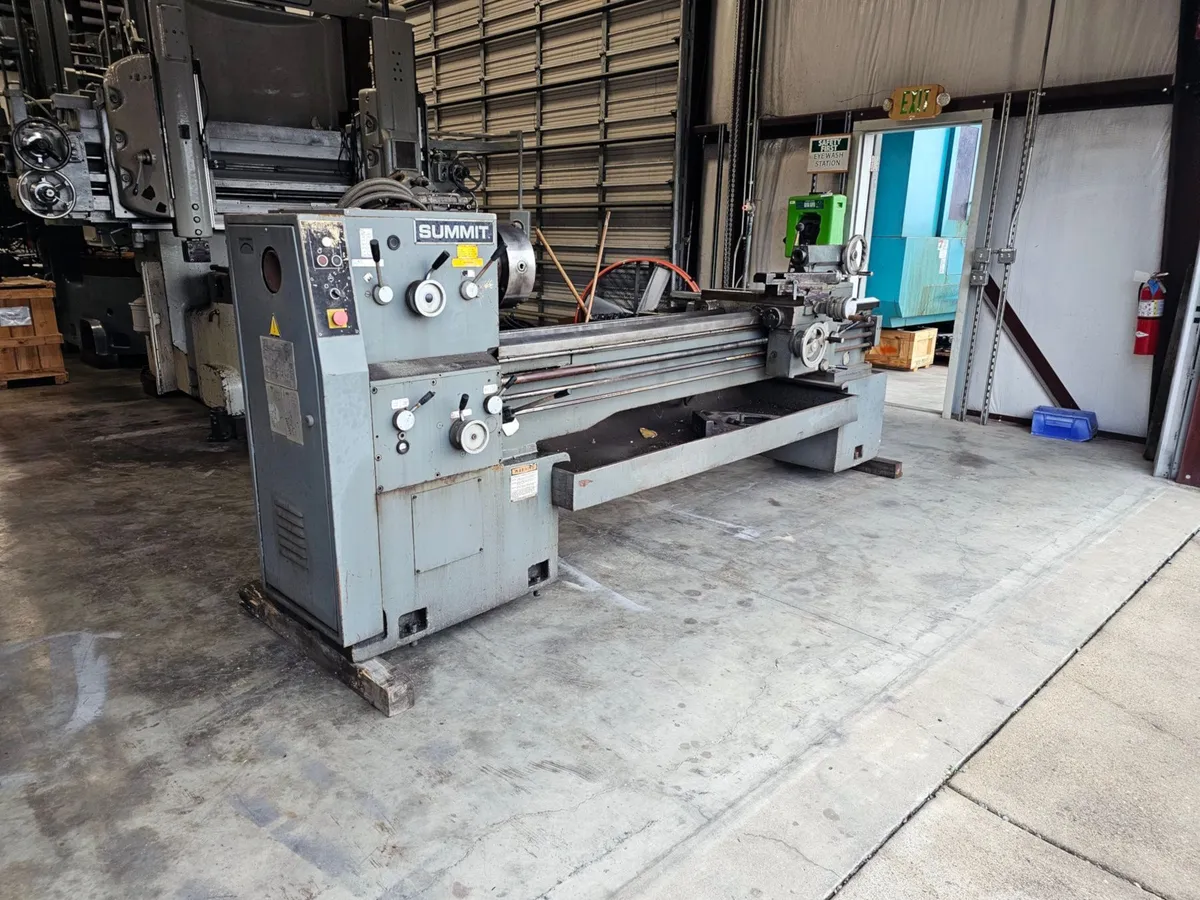

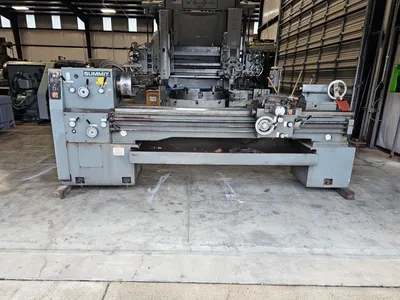

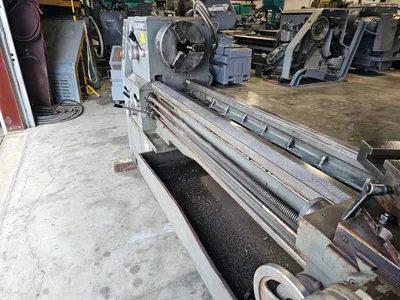

19" X 80" Used Summit Gap Bed Engine Lathe With 4" Spindle Bore

Swing Over Bed Ways................................19"
Swing Over Cross Slide.............................10-3/4"
Swing In Gap.......................................27"
Length Of Gap......................................8-3/8"
Width Of Bed.......................................13-3/4"
Cross Slide Travel.................................10-3/4"
Compound Rest Travel...............................6-1/4"
Center Distance....................................80"
Spindle Hole.......................................4"
Spindle Speeds.....................................12 To 1,500 Rpm's
Spindle Nose.......................................D-1-8
Chuck Size.........................................12" 4-Jaw
Chuck Size.........................................10" 3-Jaw
Feeds (56) Longitudinal ...........................0.00185 To 0.4447 I.P.R.
Feeds (120) Cross..................................0.0007 To 0.2224 I.P.R.
Threads Inch 56 Steps..............................3/4 To 92 T.P.I.
Threads Metric 35 Steps............................0.25 To 23 T.P.I.
Tail Stock Quill Diameter..........................3"
Tail Stock Quill Travel............................8-1/2"
Tail Stock Taper...................................#5 MT
Main Motor.........................................10 Hp.
Floor Space........................................R-L 130" X F-B 40"
Machine Height.....................................54"
Weight.............................................6,850 Lbs.
Hardened & Ground Bed Ways.........................Yes
Taper Attachment...................................Yes
Thread Dial........................................Yes
Coolant............................................Yes
Steady Rest........................................Yes

Note: Machine has been cleaned and cycled.
