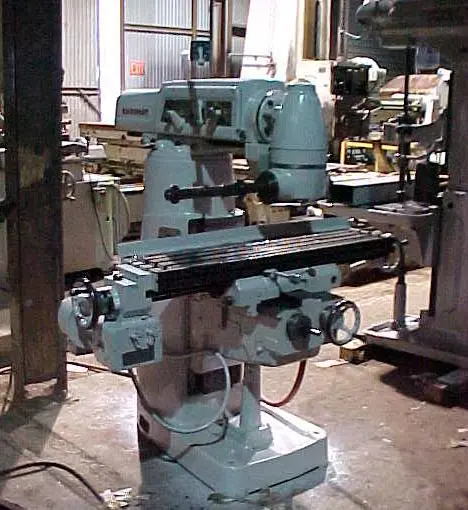

1959 CINCINNATI TOOL MASTER | Mills, Knee Type

Table Size.....................................10" X 49"
Spindle Taper Vertical.........................40 Taper
Spindle Speeds Variable........................75 To 1,130 Rpm's
Spindle Quill Travel...........................None
Spindle Diameter...............................4"
Spindle Tilt...................................+/- 45 Degrees
Spindle Swivel.................................+/- 45 Degrees
Spindle To Table Min / Max.....................6-3/4" / 16-1/2"
Saddle Travel In & Out.........................12
Table Travel Cross.............................28"
Knee Travel....................................16"
Table Feeds....................................0.075 To .150 I.P.R.
Main Motor Vertical Head.......................2 Hp.
Machine Floor Space............................R-L 82" X F-B 65"
Machine Height.................................79"
Weight.........................................3,200 Lbs.

Power Feed On Table Only.
Note As Taken From Service. Machine Has Been Cleaned, Painted and Cycled.
