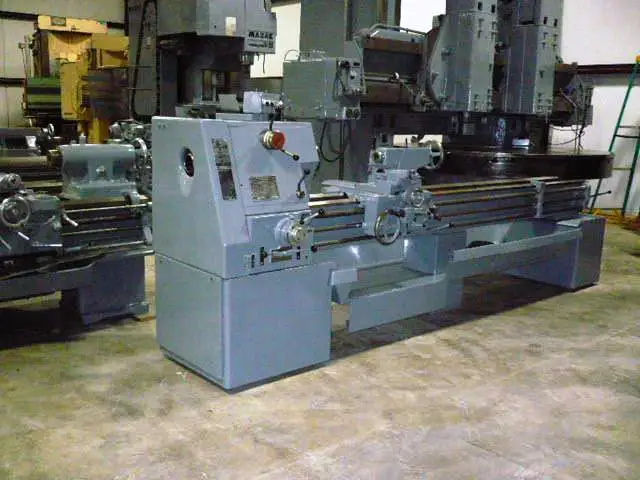

17" X 100" Used Turn-Nado (South Bend) Engine Lathe

Swing Over Bed Ways.................................17"
Swing Over Cross Slide..............................10"
Center Distance.....................................100"
Chuck Size..........................................15" 4-Jaw
Spindle Nose........................................D-1-8
Spindle Speeds......................................30 To 1,580 Rpm's
Spindle Hole........................................3-9/16"
Threads Inch........................................1-3/8 To 160 T.P.I.
Feeds...............................................0.0021 To .1242 I.P.R.
Tail Stock Taper....................................#5 Morse
Tail Stock Quill Travel.............................8"
Tail Stock Quill Diameter...........................2-7/8"
Main Motor..........................................7.5 Hp. 220 /440
Floor Space.........................................R-L144" X F-B 48"
Height..............................................65
Weight..............................................4,500 Lbs.
Steady Rest.........................................No
Rapid Traverse......................................No
Taper Attachment....................................No
Threads Metric......................................No
Full Length Chip Pan................................Yes
Hardened & Ground Replaceable Bed Ways..............Yes
Coolant.............................................Yes

Note:
Machine has been cleaned, painted and cycled.
