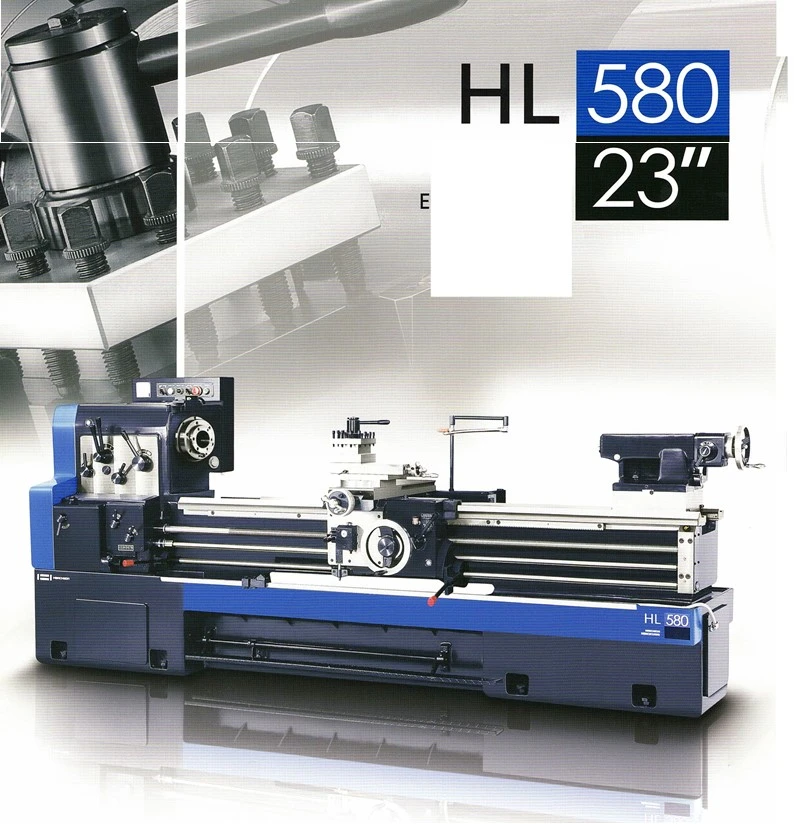

22" X 80" Whacheon Engine Lathe Model HL 580
Have one to sell?
ConditionNew
New
22" X 80" Whacheon Engine Lathe Model HL 580
Swing Over Bed Ways...................................22"
Swing Over Cross Slide................................14-11/64"
Swing In Gap..........................................31"
Gap Length............................................10-5/8"
Bed Width.............................................16-1/2"
Center Distance.......................................78.7"
Spindle Hole..........................................3-1/32"
Spindle Speeds........................................28 To 1,350 Rpm's
Spindle Nose..........................................D-1-8
Feeds Cross...........................................0.00015 To 0212 I.P.R.
Feeds Long............................................0.0014 To .0196 I.P.R.
Threads Inch..........................................2 To 80 T.P.I.
Threads Metric........................................0.25 To 14 MM
D.P...................................................8 To 112 T.P.I.
Module................................................0.05 To 3.5 T.P.I.
Tail Stock Quill Diameter.............................3"
Tail Stock Quill Travel...............................6"
Tail Stock Taper......................................# 5 Morse
Main Motor............................................10 Hp.
Machine Dimension.....................................146.2 R-L X 48" F-B
Machine Height........................................65
Weight................................................7,256 Lbs.
Driving Plate.........................................11-3/4"
Change Gear...........................................60 T
Face Plate Gap Bed Only...............................17-3/4"
Steady Rest...........................................1.5" To 6"
Driving Plate.........................................11-3/4"
Center Sleeve.........................................MT#7
Live Center...........................................MT #5
Dead Center (Cemented Carbide Tip) ...................MT #5
Change Gear...........................................60 T
Mirco Carriage Stop...................................Yes
Coolant Pan Only......................................Yes
Thread Dial...........................................Yes
Coolant Pan Only......................................Yes
Hardened And Ground Ways Yes
Optional Accessories Will Be Added To Base Price:
Newall D.R.O. 2 Axis..................................$4,150.00 Installed
Taper Attachment......................................$5,750.00 Installed
Chuck Options:
BTC 16"4-Jaw..........................................$2,450.00
Gator 16" Semi-Steel Chucks, Direct Mount D1-8,
4-Jaw Independent, With 2 Piece Jaws..................$3,615.00
Gator 15" 3-Jaw Scroll Type,
With 2 Piece Jaws Direct Mount D1-8...................$3,450.00
Aloris Type Tool Post And 5 Holders...................$1,450.00
Steady Rest (1.5" To 6")..............................$1,250.00
Roller Jaw Set For Steady Rest........................$525.00
Steady rest Over size (6"-10")........................$2,550.00
Follow Rest...........................................$800.00
Two Years Parts Warranty
Delivery 90 to 120 Days after receipt purchase order and 20% down payment.
Features:
Number(12 steps) and range of speeds of this lathe is so created that the most suitable cutting speed may be given to any size of workpiece diameter within the possible range of cutting size, namely, within the range of swing over bed.
The main spindle is supported at three points by precision bearings and its hole is generously sized.
Automatic forced lubrication system supplies lubricant to every sliding way and driving mechanism inside the headstock.
By lubricating device installed inside apron, automatic lubrication is provided between carriage slideways and bed ways.
An adjustable carriage feed stop dog is provided on bed as well as a positive micrometer stop.
The machine is equipped with an overload safety device for feeding and thread cutting.
Cross feed screws are always supplied a proper quantity of grease more than one time per a week for maintaining smooth travel under maximum accuracy.
Bed is so designed to prevent torsion, side-wall is double wall and rib type.
Hardened and ground bed ways are made of high tensile cast iron. Produced under the license of Meehanite Know-How.
Lower portions of bed casting are box-shaped and are full length, forming the legs, chip pan and coolant reservoir.
The hydraulic disk brake provides safe quick braking of the spindle without generation of heat in the headstock.
