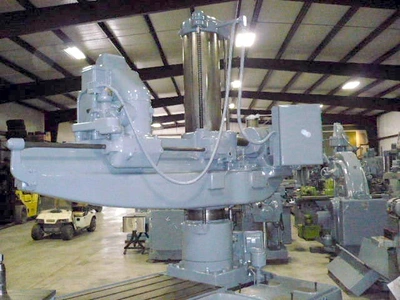

Used Cincinnati Bickford 7'X19" Radial Drill

Arm Size...............................................7'
Column Diameter........................................19"
Maximum Height Under Arm...............................72"
Min. Height Under Arm..................................24"
Spindle Speeds.........................................30 To 1,000 Rpm's
Spindle Taper..........................................# 6 Morse
Spindle Travel.........................................20"
Spindle Diameter.......................................4"
Spindle Feeds..........................................0.004 To .125 I.P.R.
Threads Leads..........................................8,11-1/2,14,18,20,27
Main Motor.............................................20 Hp. 220 / 440
Machine Width & Length.................................90" X 130"
Machine Height.........................................148"
Machine Weight.........................................30,000 Lbs.
Box Table..............................................24" X 28"
Power Clamp To Colum...................................Yes
Power Elevation........................................Yes
Coolant................................................Yes

Note: Machine has been cleaned, painted and cycled.
