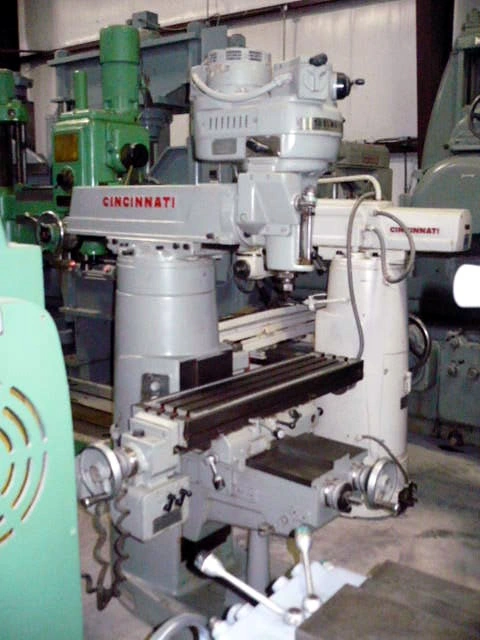

1958 CINCINNATI TOOL MASTER | Mills, Knee Type

Table Size..............................10" X 42"
Spindle Diameter........................4"
Spindle Taper...........................#40 Standard
Spindle Speeds Variable.................85 To 3,800 Rpm's
Spindle Feeds Manual
Spindle Quill Travel....................5"
Spindle Tilt............................+/- 45 Degrees
Spindle Swivel..........................+/- 45 Degrees
Spindle To Table Min / Max..............6-13/4" / 16-1/4"
Saddle Travel In & Out..................10"
Table Travel Cross......................22"
Knee Travel.............................16"
Table Feeds.............................0.075 To .150 I.P.R.
Main Motor..............................2 Hp.
Floor Space.............................R-L 82" X F-B 65"
Height..................................79"
Weight..................................3,200 Lbs.

Note: Cleaned, Painted & Cycled.
