42" Used Bullard Spiral Drive Vertical Turret Lathe

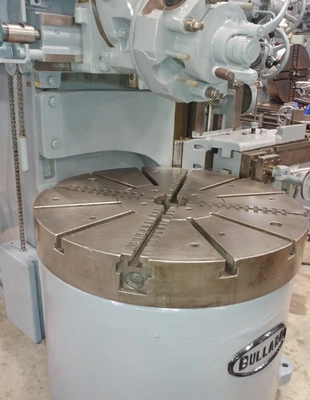

Table Size..........................................42" 4-Jaw
Swing Side Head Below Table.........................46"
Swing Side Head Above Table.........................45"
Table Speed.........................................8 To 70 Rpm's
Cross Rail Travel...................................25"
Height Under Rail...................................34"
Turret Head Position ...............................5
Turret Ram Head Turret Travel Up & Down.............27"
Turret Head Swivel..................................30 Degrees
Turret Head Travel Left To Right....................30-3/8"
Side Head Travel Up & Down..........................25"
Side Head Travel In & Out...........................21"
Feeds...............................................0.005 To .500
Main Motor..........................................25 Hp. Wire 440 Volts,
....................................................3 Phase, 60 Cycle
Machine Floor Space.................................R-L 117" X F-B 85"
Machine Height......................................104"
Weight..............................................19,000 Lbs.
Hard Top Jaws (4)...................................Yes
Built In 4 Way Tool Post On Side Head...............Yes
Rapid Traverse To Both Head.........................Yes
Power Elevation Of Rail.............................Yes
Note:
Turret & side head gear boxes will be reconditioned.
Spindle & transmission will be checked.
Oil will be drained, and tanks will be cleaned.
Side will be removed and check and cleaned.
Chuck jaws will be removed and taken apart and cleaned.

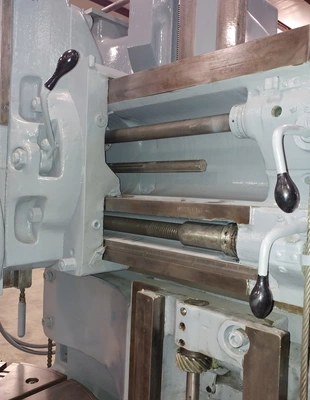

New electric motors and gear boxes for turret rapid traverse left to right
and up and down.
New electric motor for rail elevation and gear box complete with electrics.
New electrics with exception of main breaker.
New cross feed nut and screw.
New bearing in main motor.
New belts
Machine will be cleaned, painted and cycled.
Machine will take 12 to 16 weeks to complete, once the PO is received.
Price once above work is completed $59,500.00
This machine is for reference only. It has been sold.

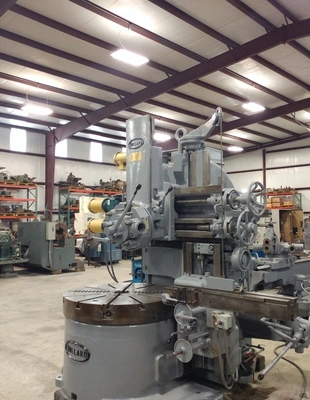

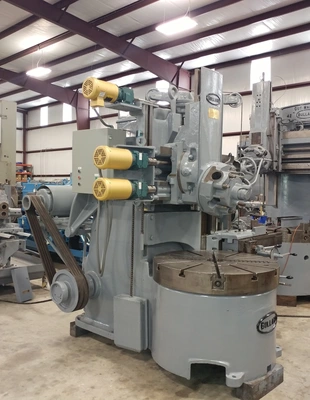

It shows the new rapid system and what the machine will look like when it
is finished.
