42" Used Bullard Hi-Column Spiral Drive Vertical Turret Lathe Model 42 Serial Number Year 1943

Table Size .....................................42" 4-Jaw
Swing Side Head Below Table.....................46"
Swing Side Head Above Table.....................45"
Table Speed ....................................8 To 70 Rpm's
Cross Rail Travel...............................25"
Height Under Rail...............................60"
Turret Head Position............................5
Turret Ram Head Turret Travel Up & Down.........27"
Turret Head Swivel..............................30 Degrees
Turret Head Travel Left To Right................30-3/8"
Side Head Travel Up & Down......................25"
Side Head Travel In & Out.......................21"
Feeds...........................................005 To .500
Main Motor......................................25 Hp.
Machine Floor Space.............................R-L 117" X F-B 85"
Machine Height..................................134"
Weight..........................................22,000 Lbs.
Built In 4 Way Tool Post On Side Head...........Yes
Rapid Traverse To Both Head ....................Yes
Power Elevation Of Rail.........................Yes

Note:
Note: Turret & Side Head Gear Boxes will be reconditioned.
Chuck will be pulled and check. Oil will be drained and tanks
will be cleaned. Side head will be removed and check and cleaned.
New electric motors and gear boxes for turret rapid travel left to
right and up and down. New electric motor for rail elevation and gear

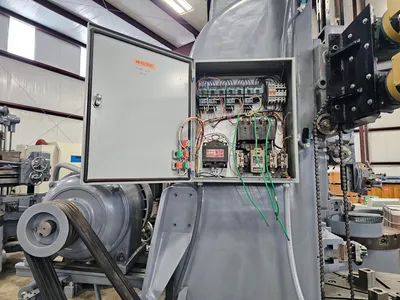

box. New electrics. New cross-feed nut and screw.
Machine will be cleaned, painted and cycled.
Reconditioning will take 8 to 10 weeks after receipt of Purchase Order.

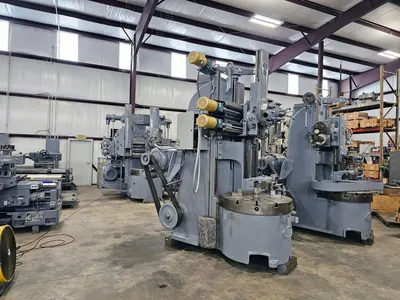

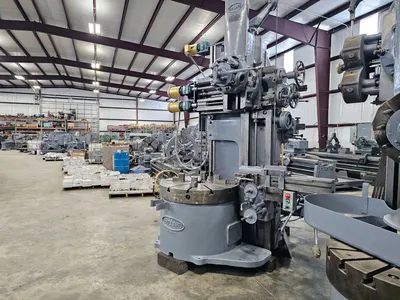

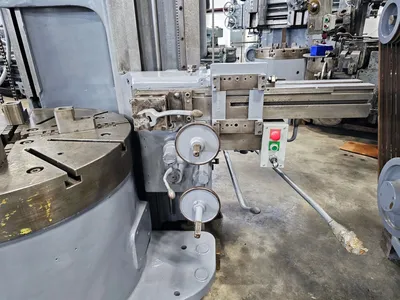

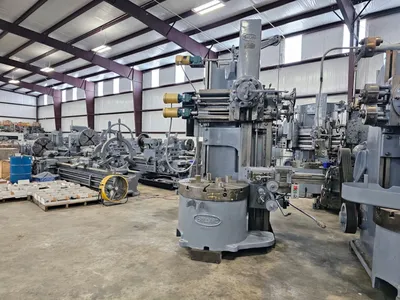

Photos are for reference only. That machine has been sold.

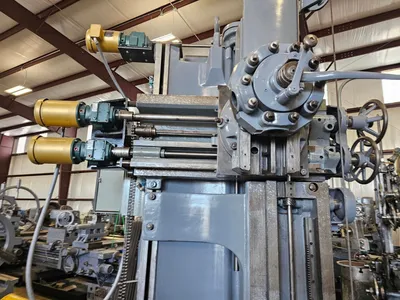

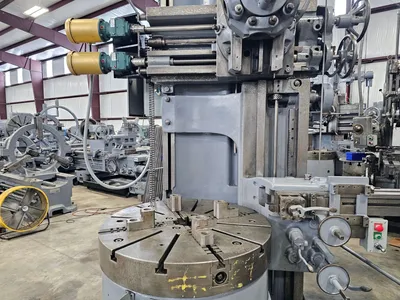

It shows how the machine will look with new rapid traverse and
rail elevation motors.
